GM Truck ( '81-'87 ('91)) - Winch Mount v3

GM Truck ( '81-'87 ('91)) - Winch Mount v3

Regular price $695.00 USD
Regular price Sale price $695.00 USD
Sale Sold out
Style

Description:

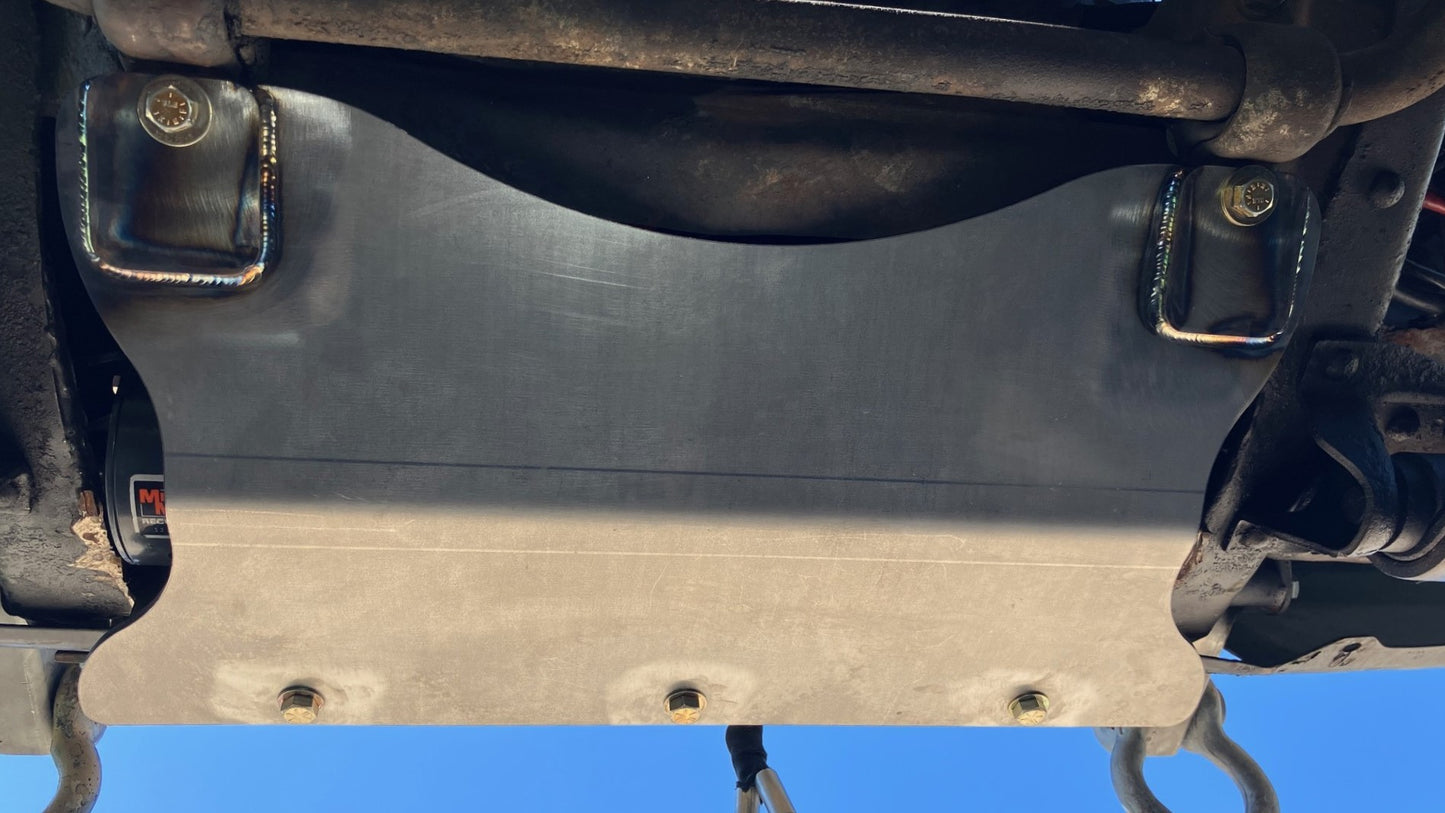

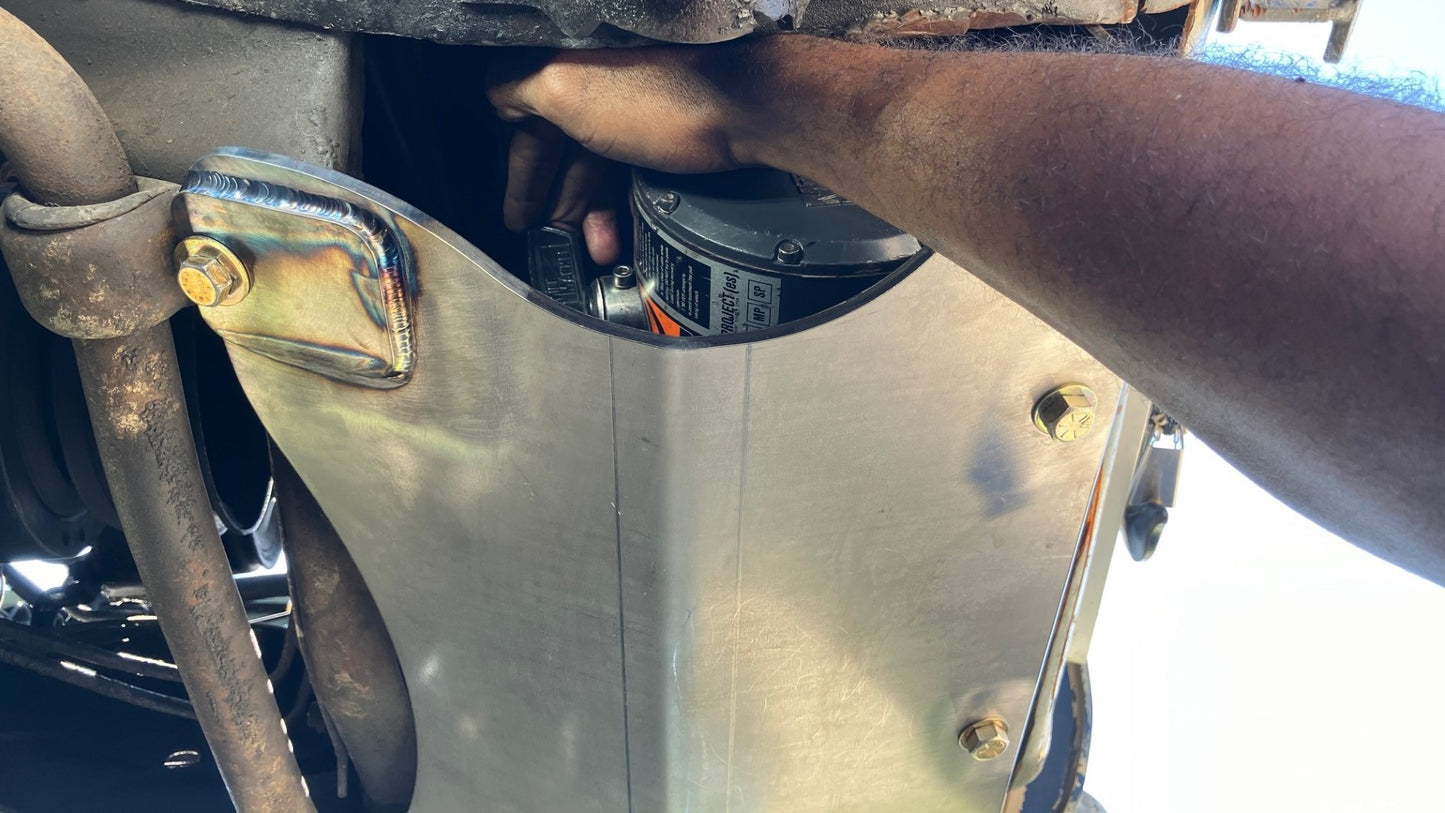

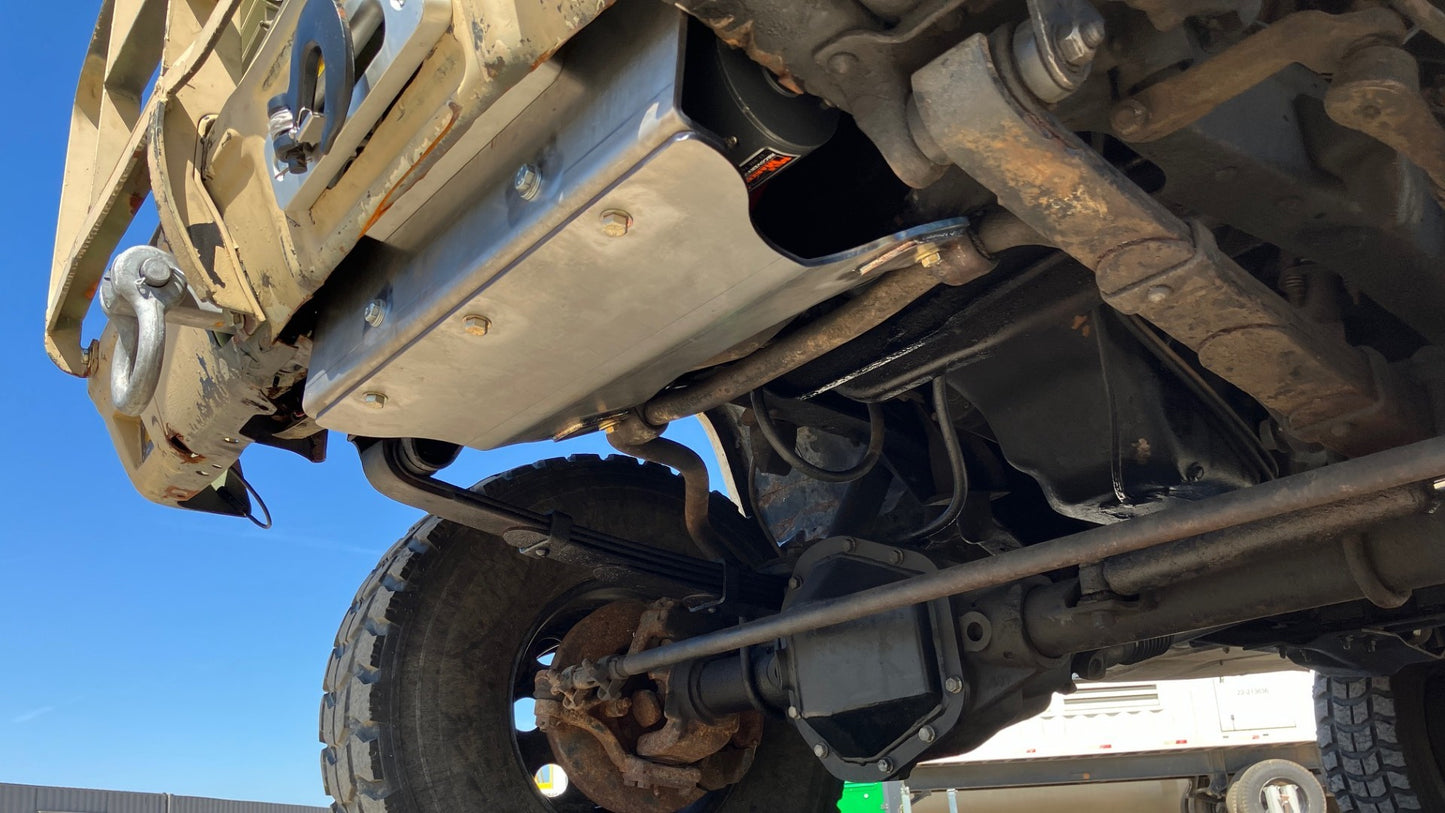

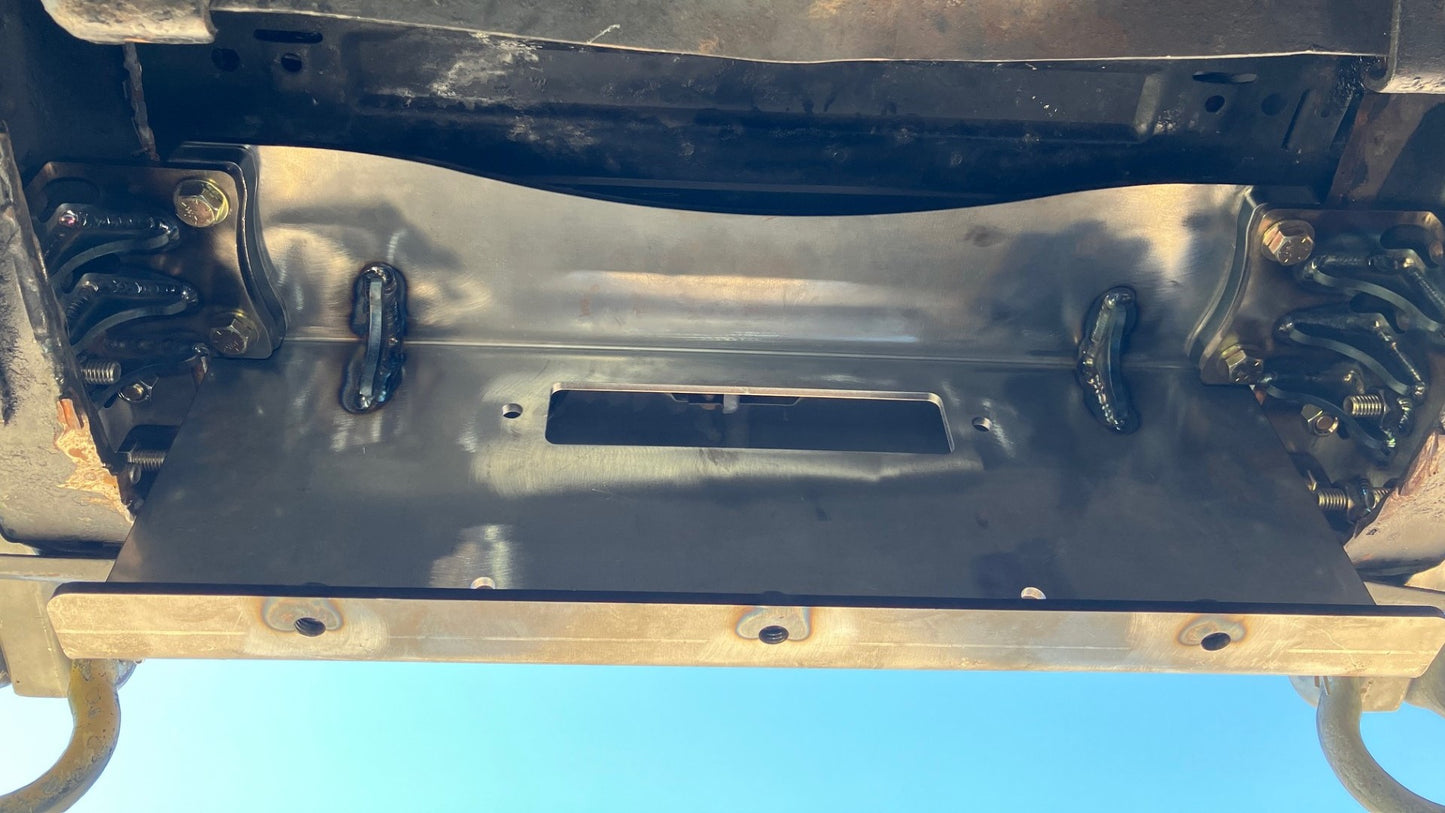

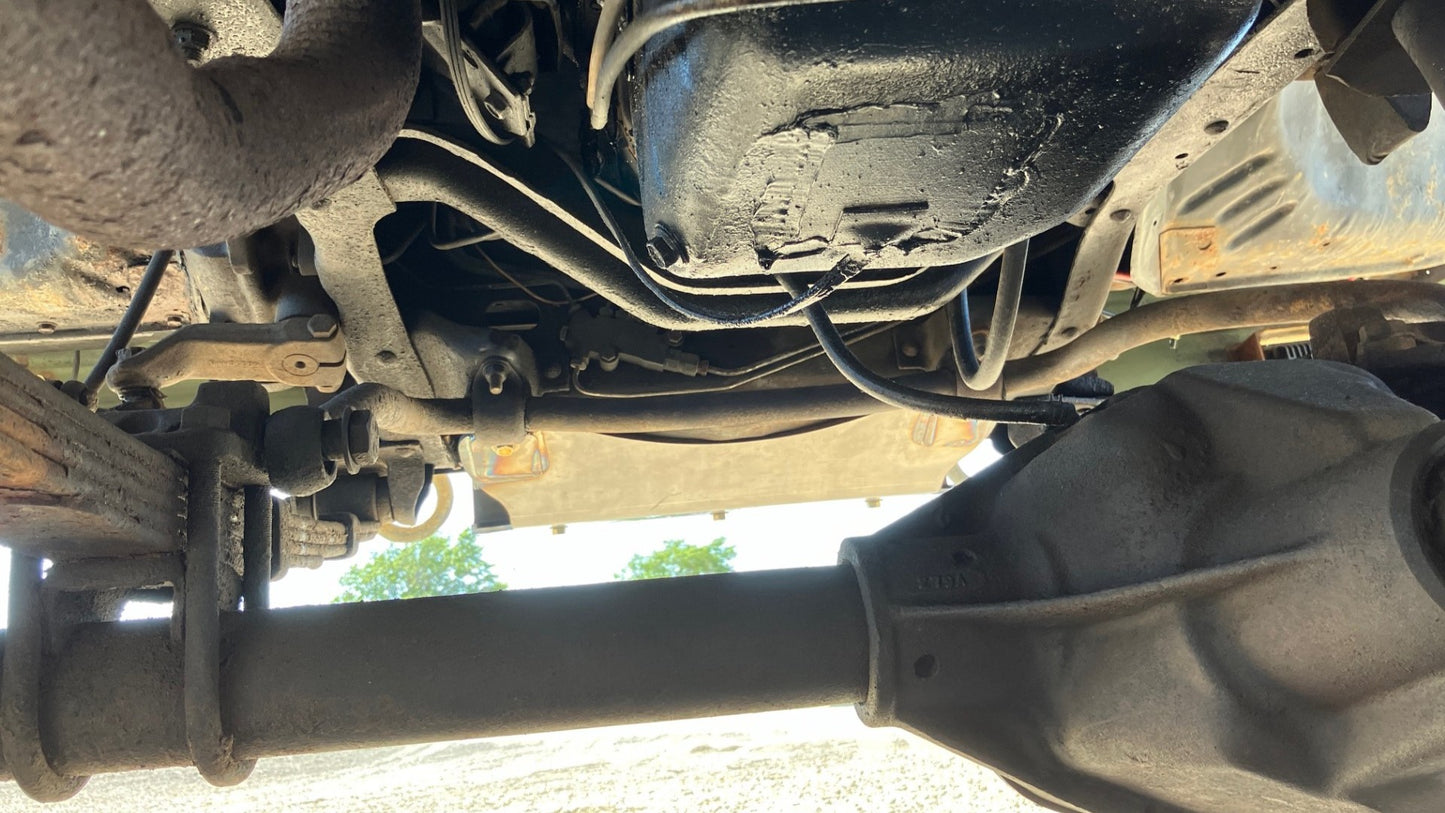

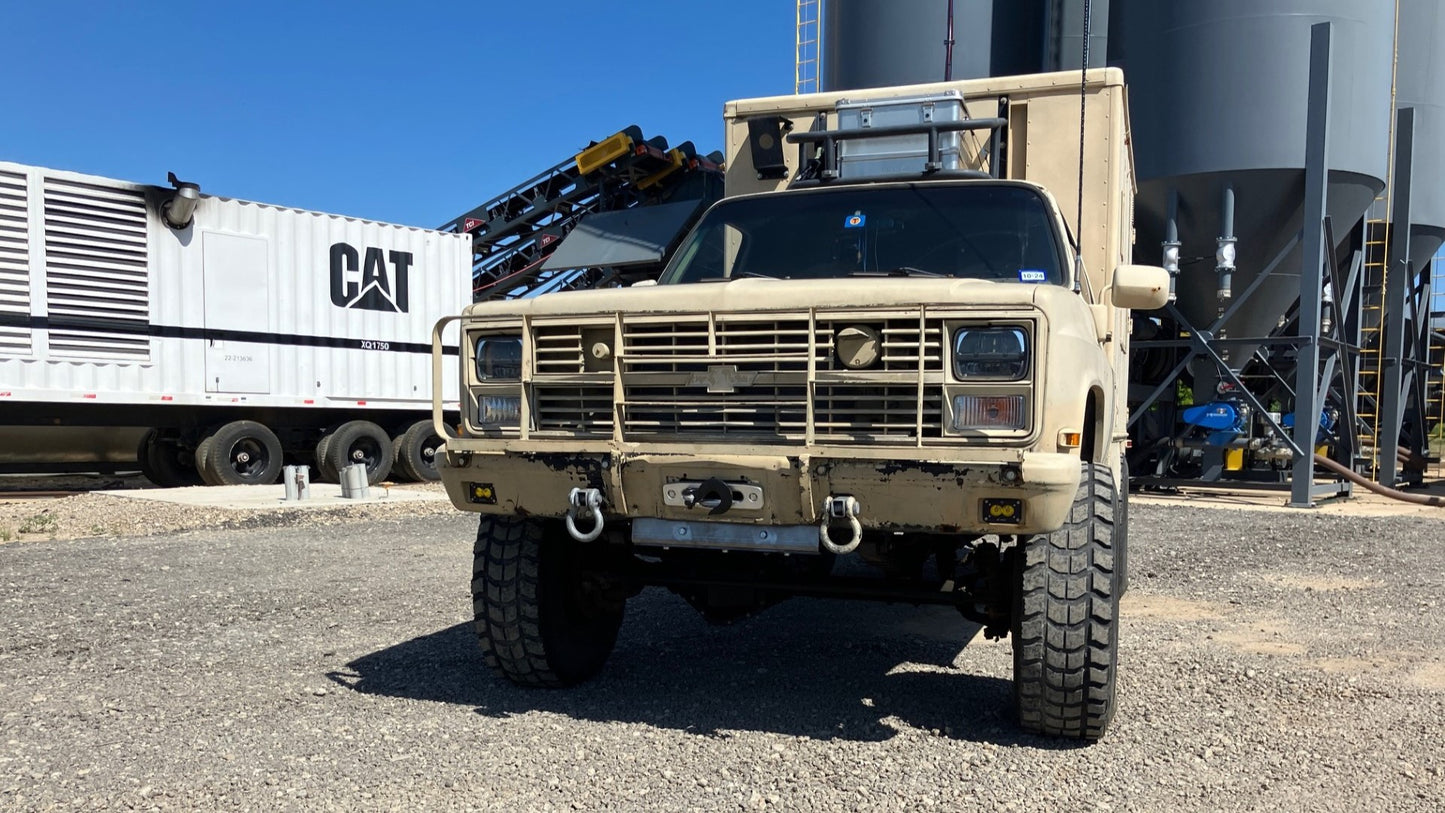

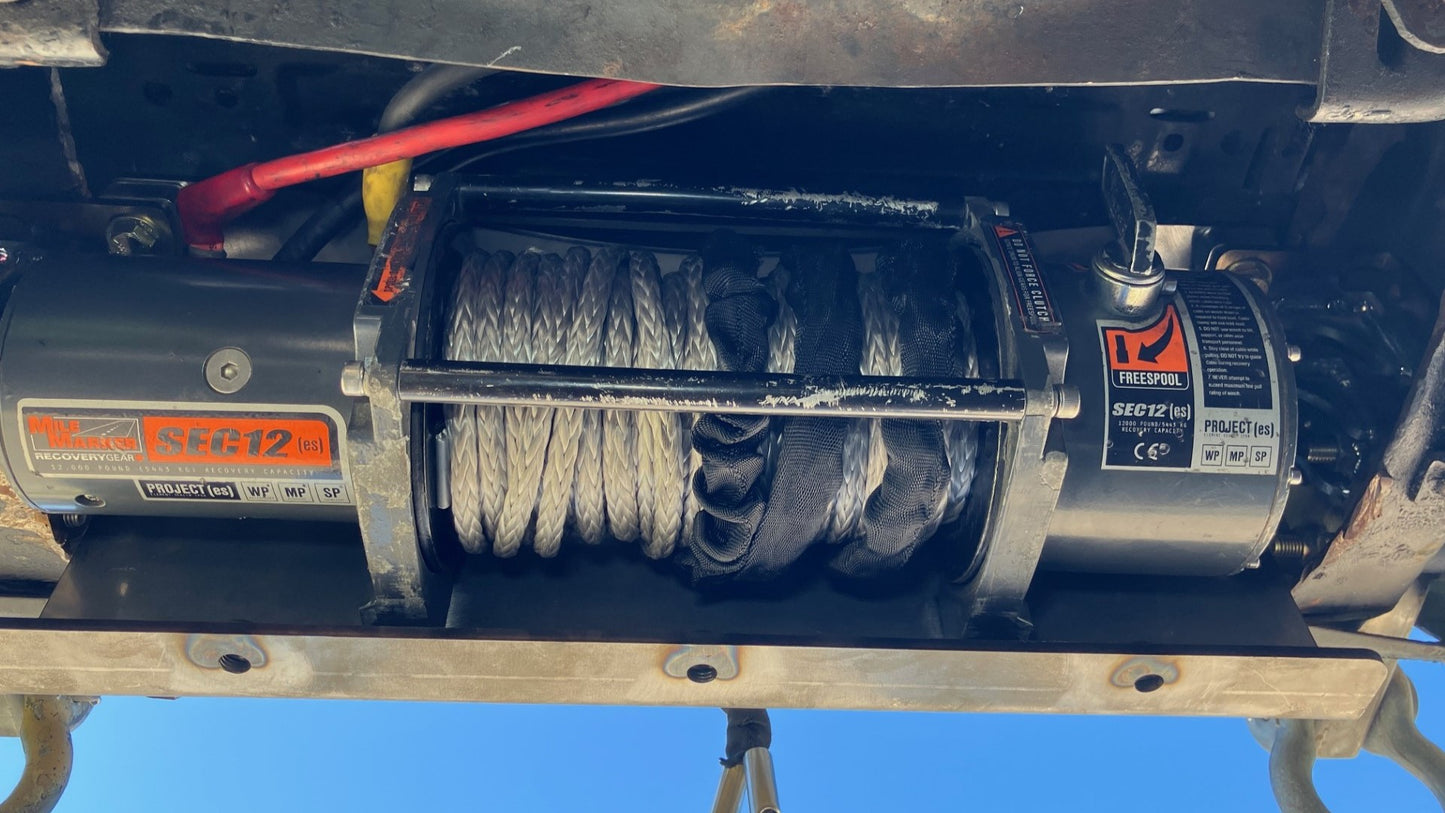

This winch mount is designed to work with the '81-'87 ('91) GM Trucks with minor alterations to the truck.  It is mounted behind the bumper so the fairlead opening will need to be cut out of the bumper.  It includes a skid plate that protects the winch and is integral to the strength of the mount.

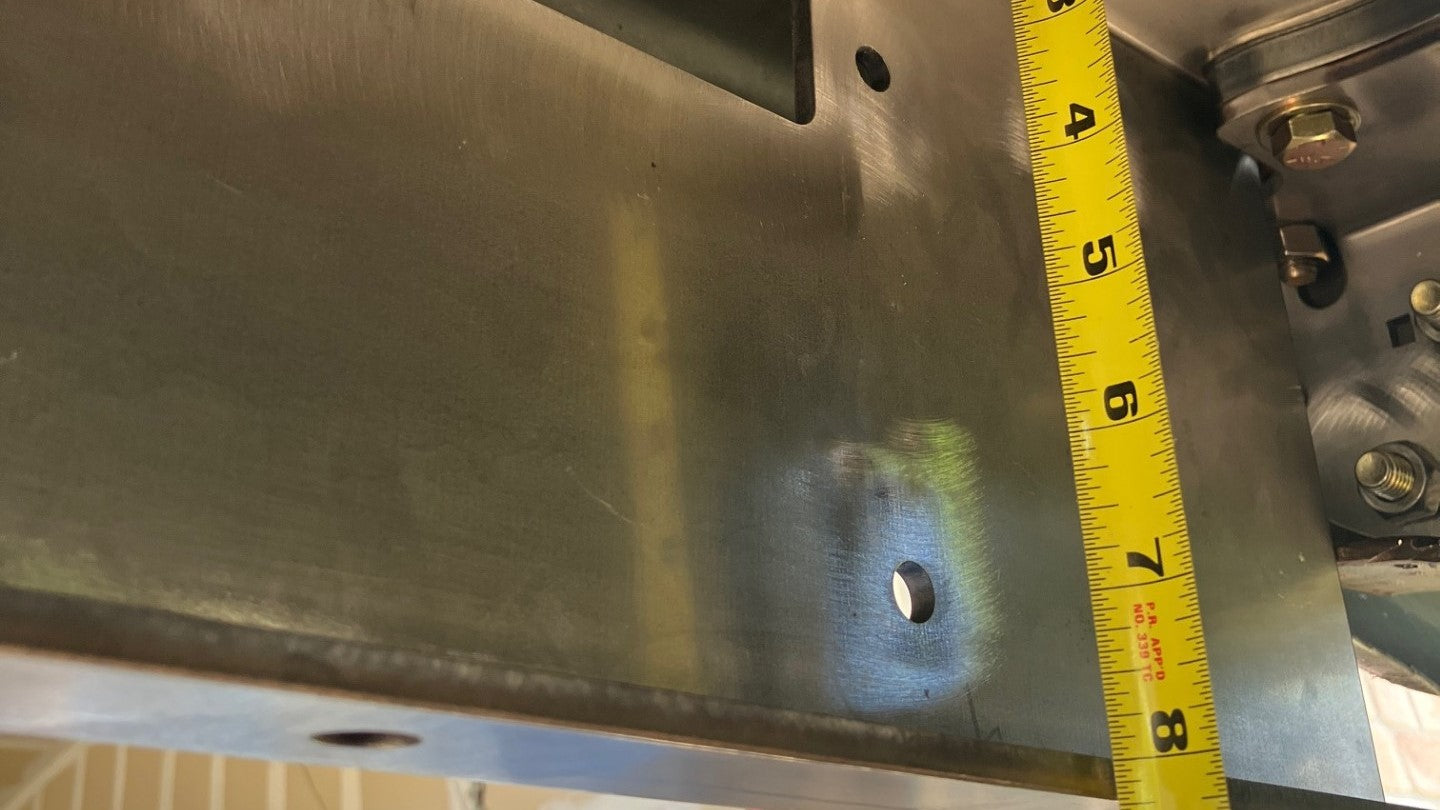

It is 1/4" HRPO A36 steel with the exception of 4 spacers. The winch bolt pattern is 10" x 4.5" and the fairlead bolt pattern is 10".  Please refer to the last three photos which show the max dimensions.  Hardware is included.  Winch, fairlead, and hardware to mount both are not included.  Ships bare metal ready for paint or powder coat.  Tested for use up to a 12,000 lbs winch.

The DIY version has tab and slot to aid in welding.  Instructions coming soon.

Designed and Manufactured in the USA

Critical Dimensions:

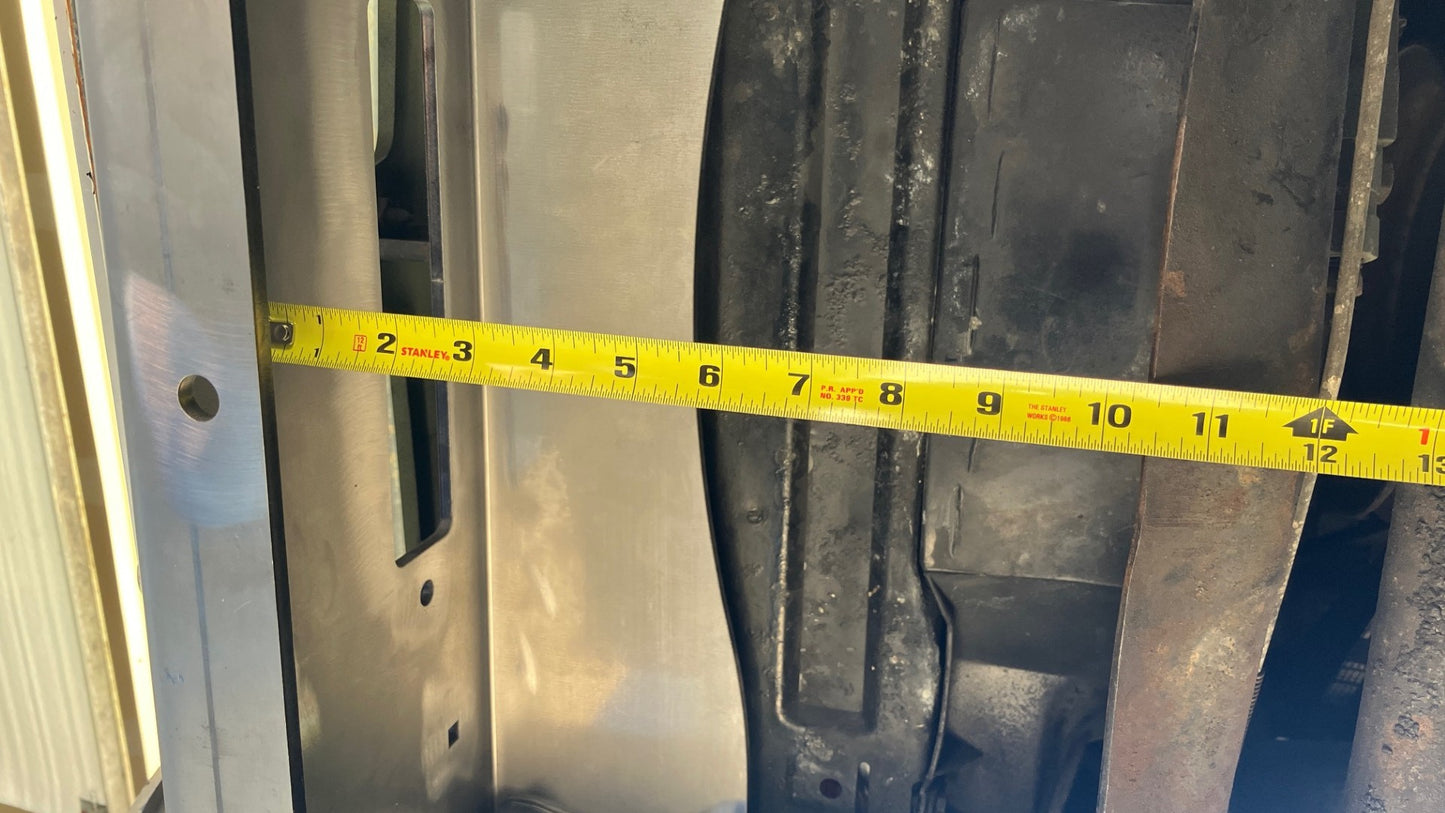

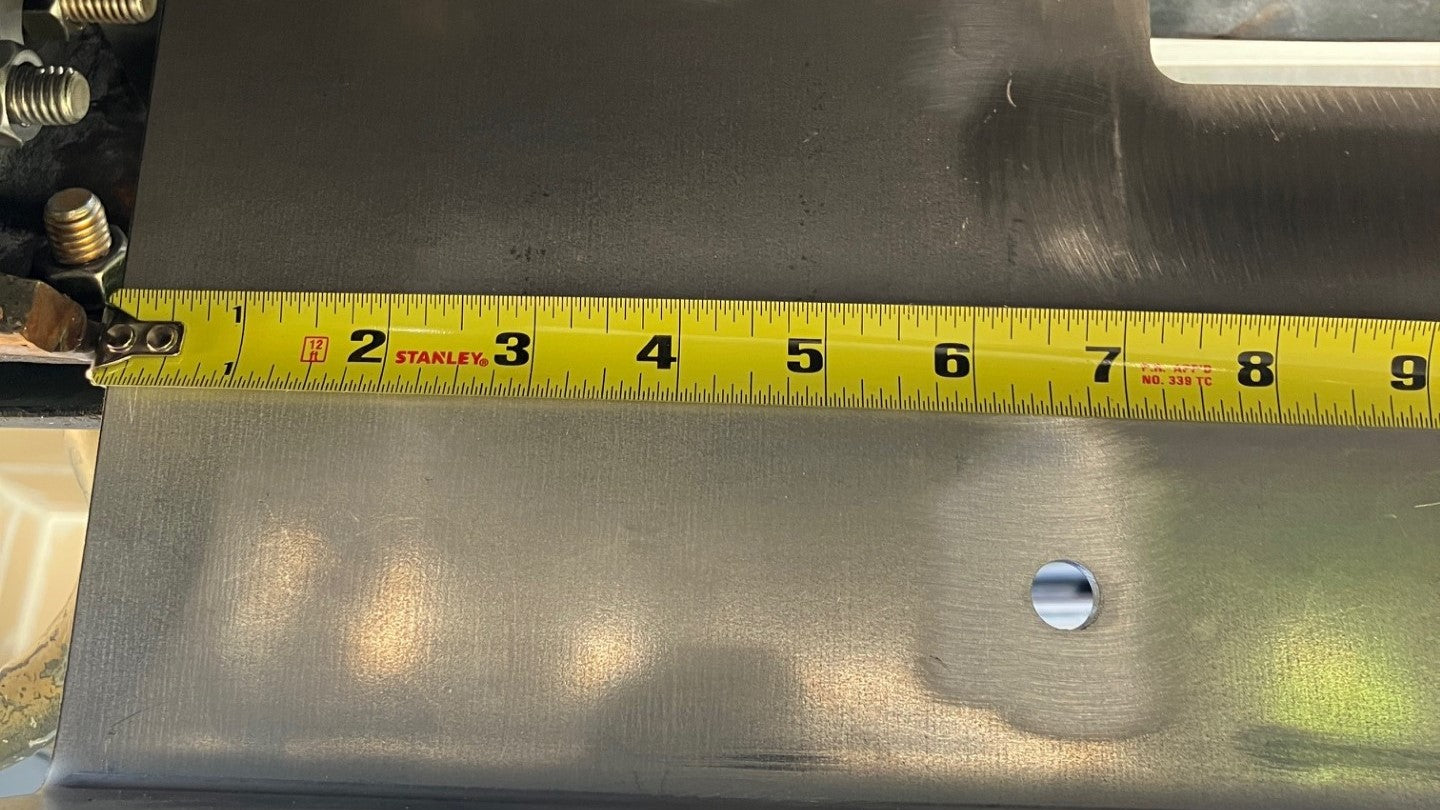

Max Winch Overall Length - 23"

Max Winch Length from bolt holes to frame - 6.5"

Max Winch Depth - 8"

Max Winch Height - 10.375"

Hardware info: All Grade 8.  USA made is prioritized, however may be globally sourced if needed due to lead times.

1/2"-13 hex bolt, 3.5" x8

1/2"-13 hex bolt, 2" x4

1/2"-13 hex bolt, 1.75" x2

1/2"-13 hex nut x14

1/2" washer x22

7/16-14 hex bolt, 2" x2

7/16"-14 hex bolt, 1.25" x3

7/16"-14  lock nut x2

7/16'-14 weld nut x3

7/16" washer x5

Shipping info:

Weight: 56 lbs

Box:  24x16x8
