Vehicle Dolly 5600 (Digital Download)
Vehicle Dolly 5600 (Digital Download)

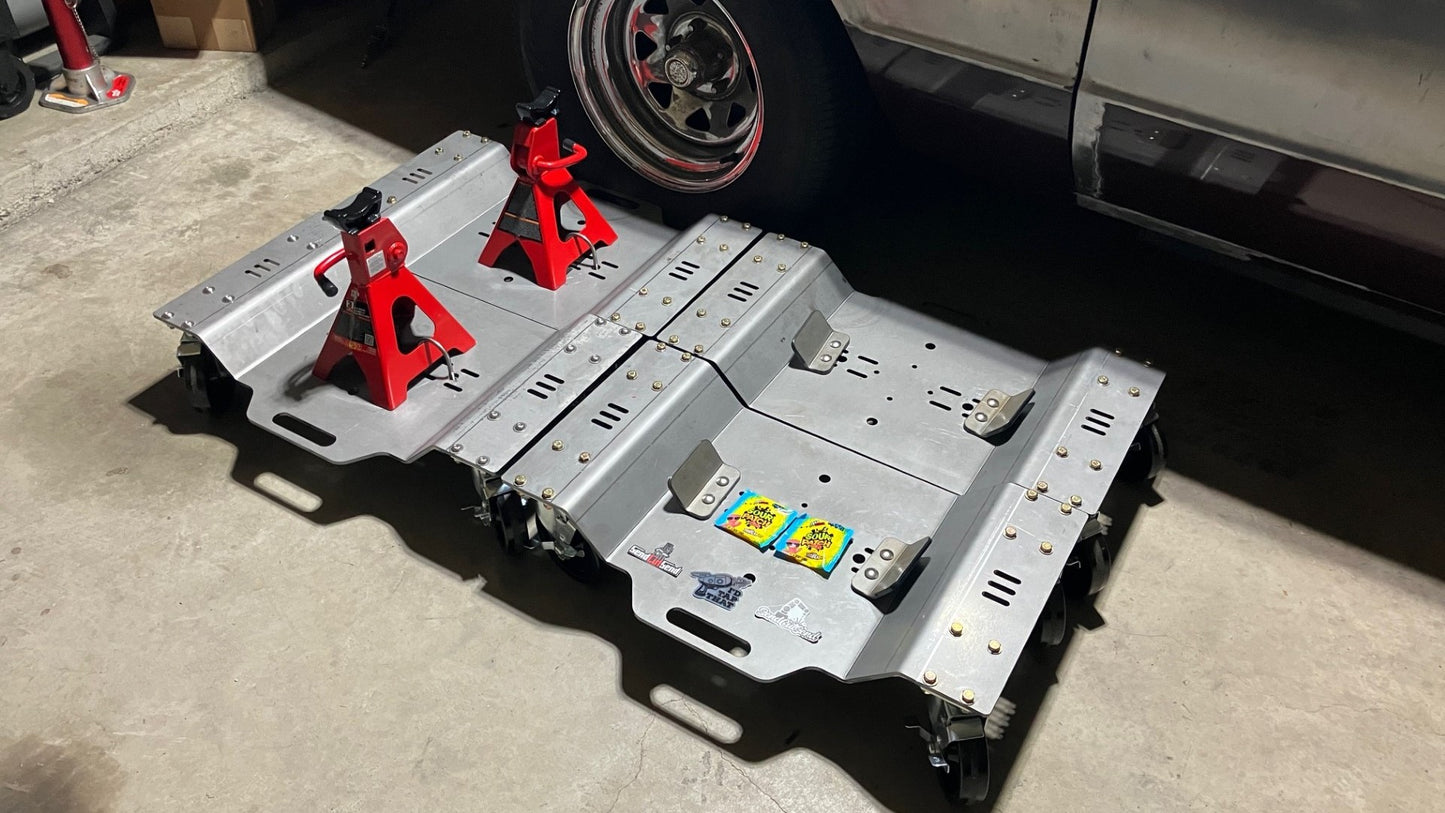

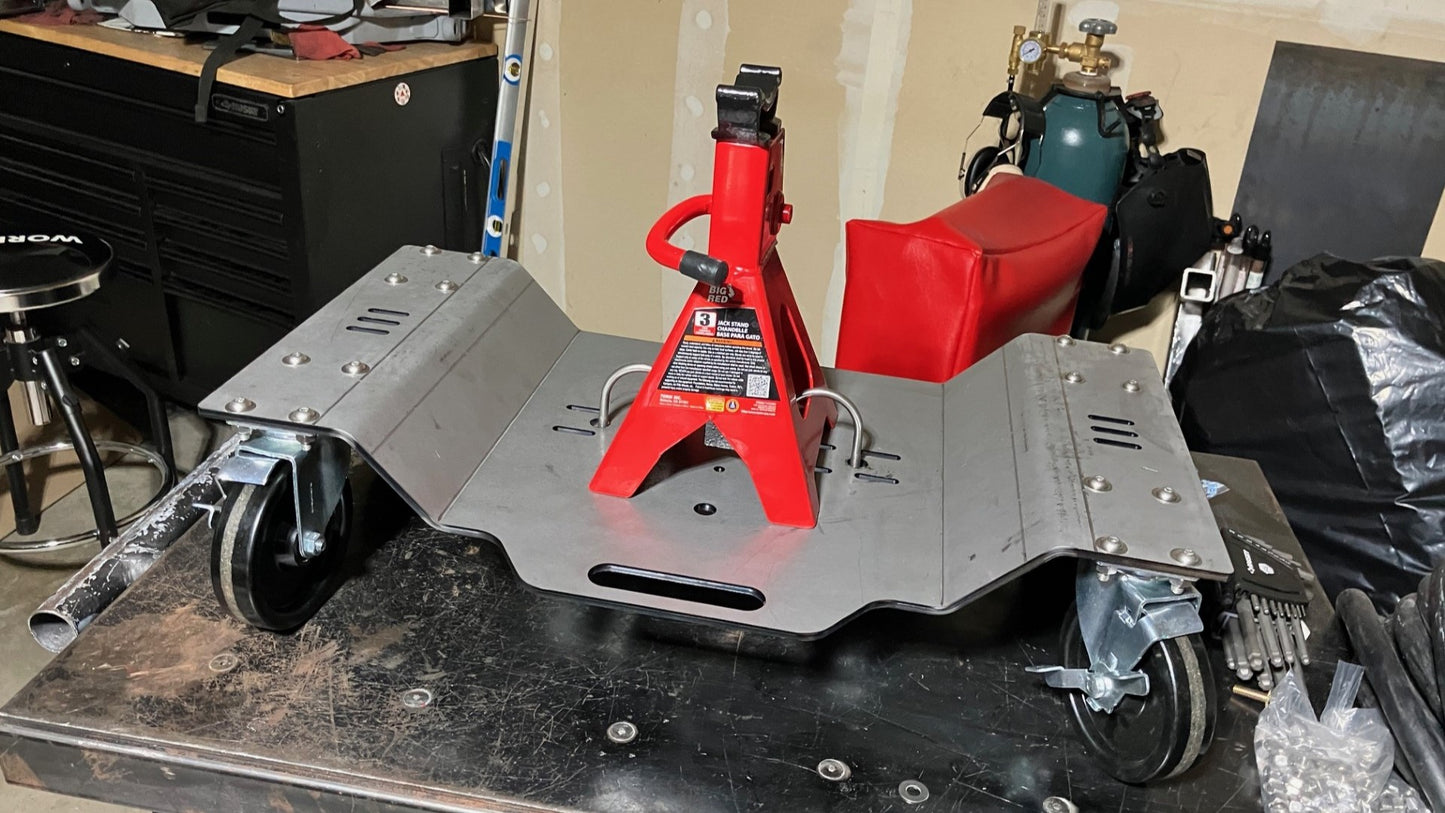

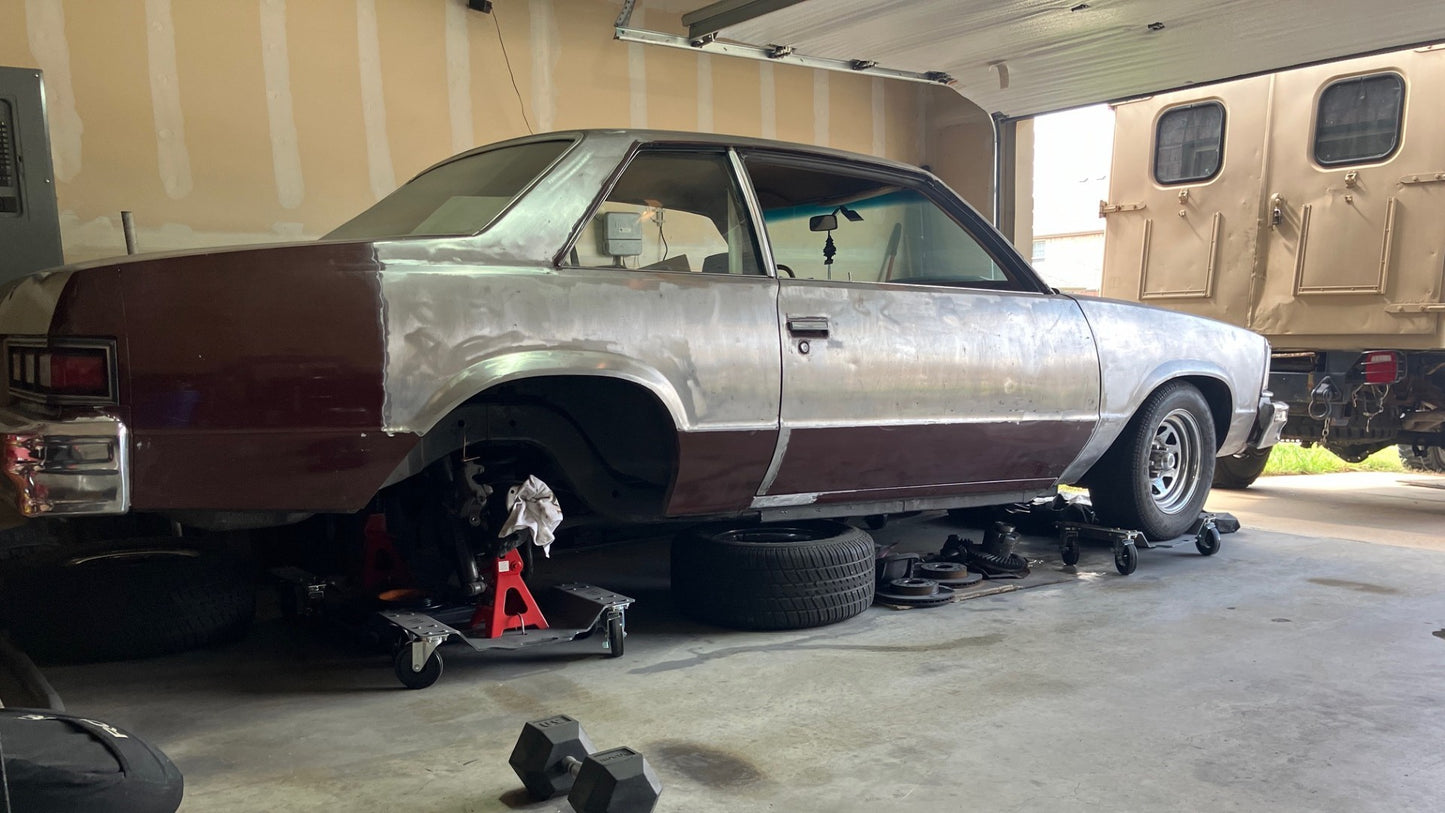

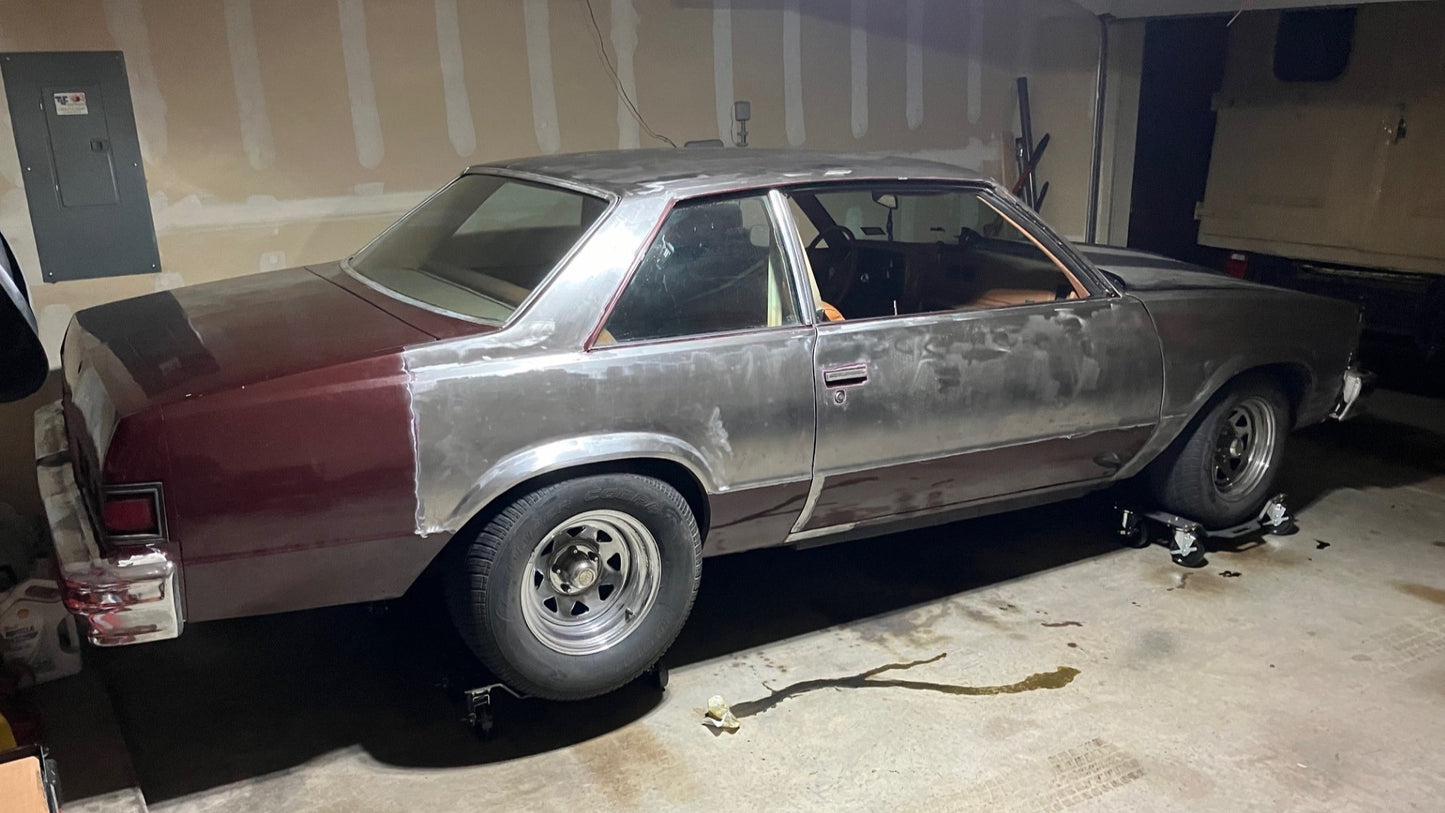

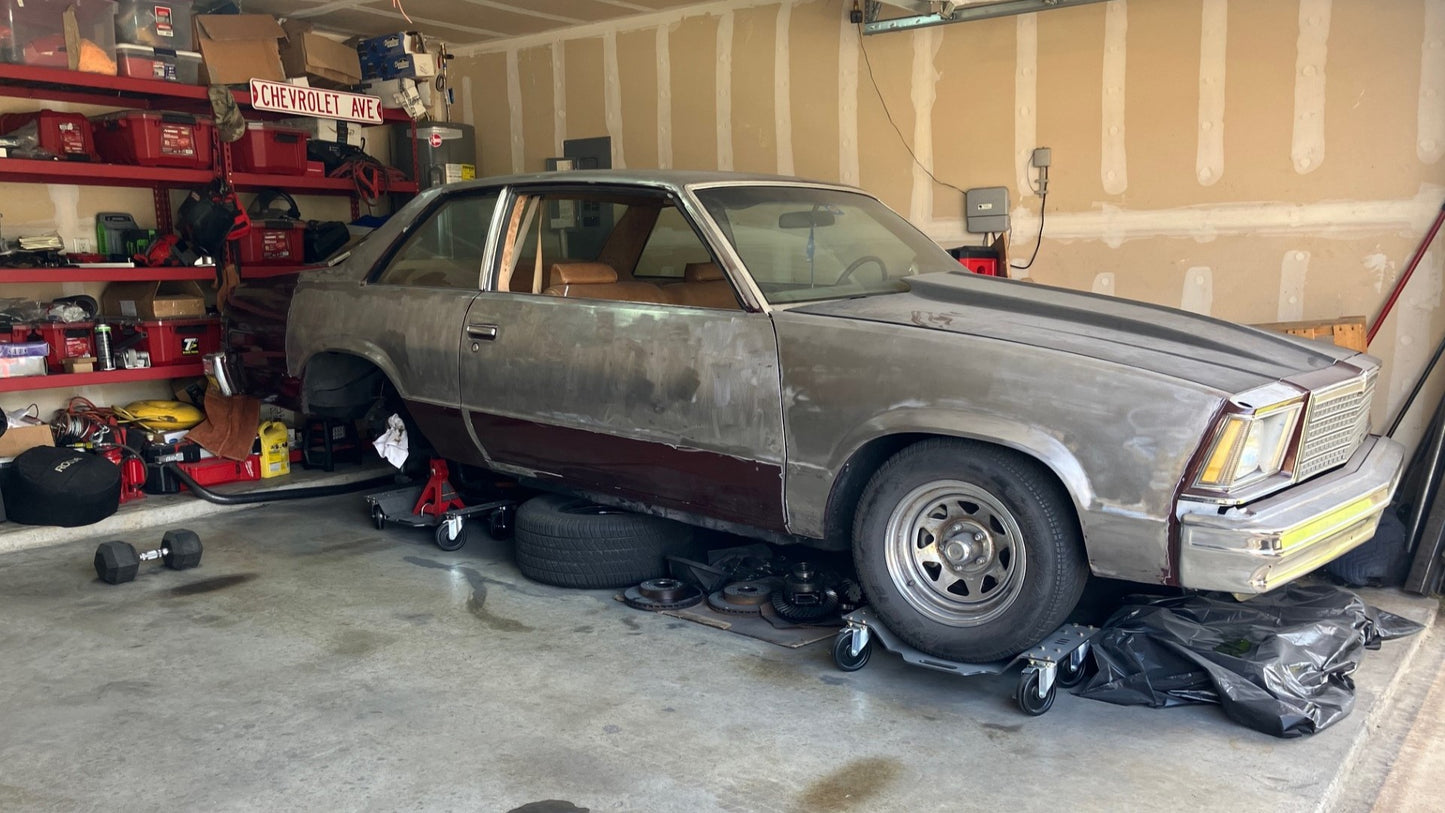

This is a digital download for a vehicle dolly designed to support up to 5600 lbs total (1400 per wheel). I designed this dolly to accept 5" wheels and a jack stand. I also designed tire stops for use with a 13" - 40" tire. The dolly's and the tire stops are 1/4" HRPO steel.
The following parts are included in the download: (4 of each required per vehicle)

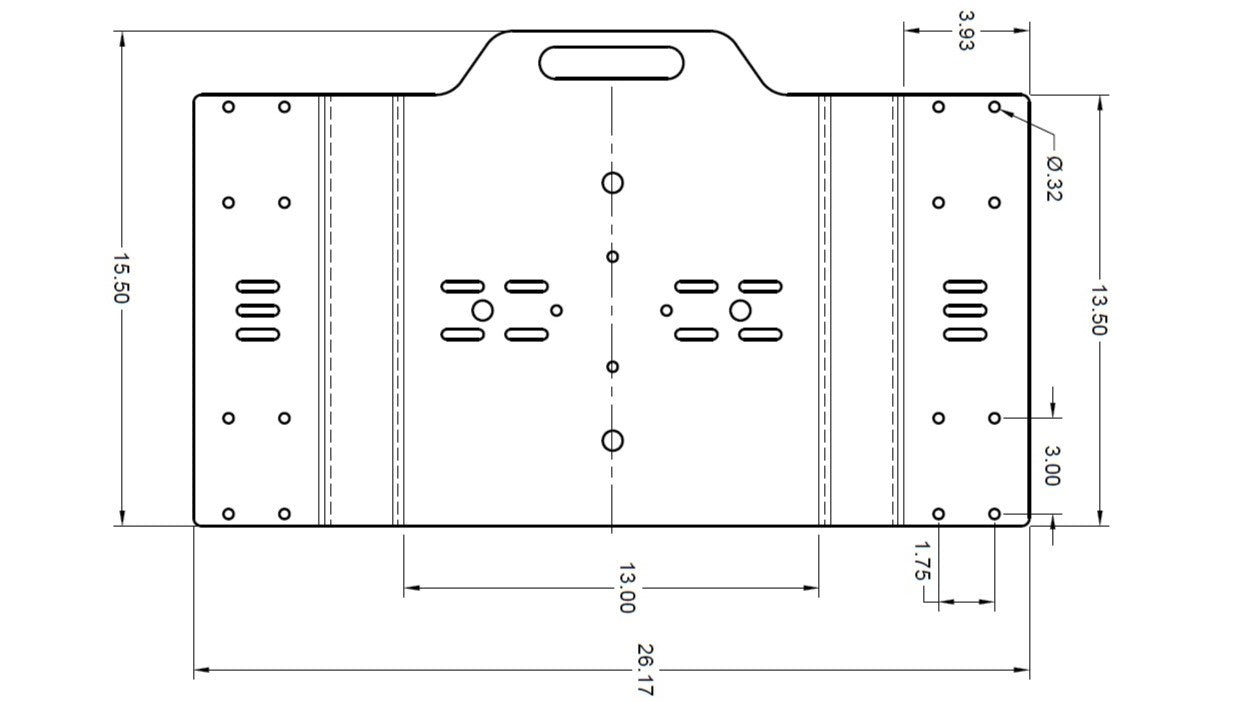

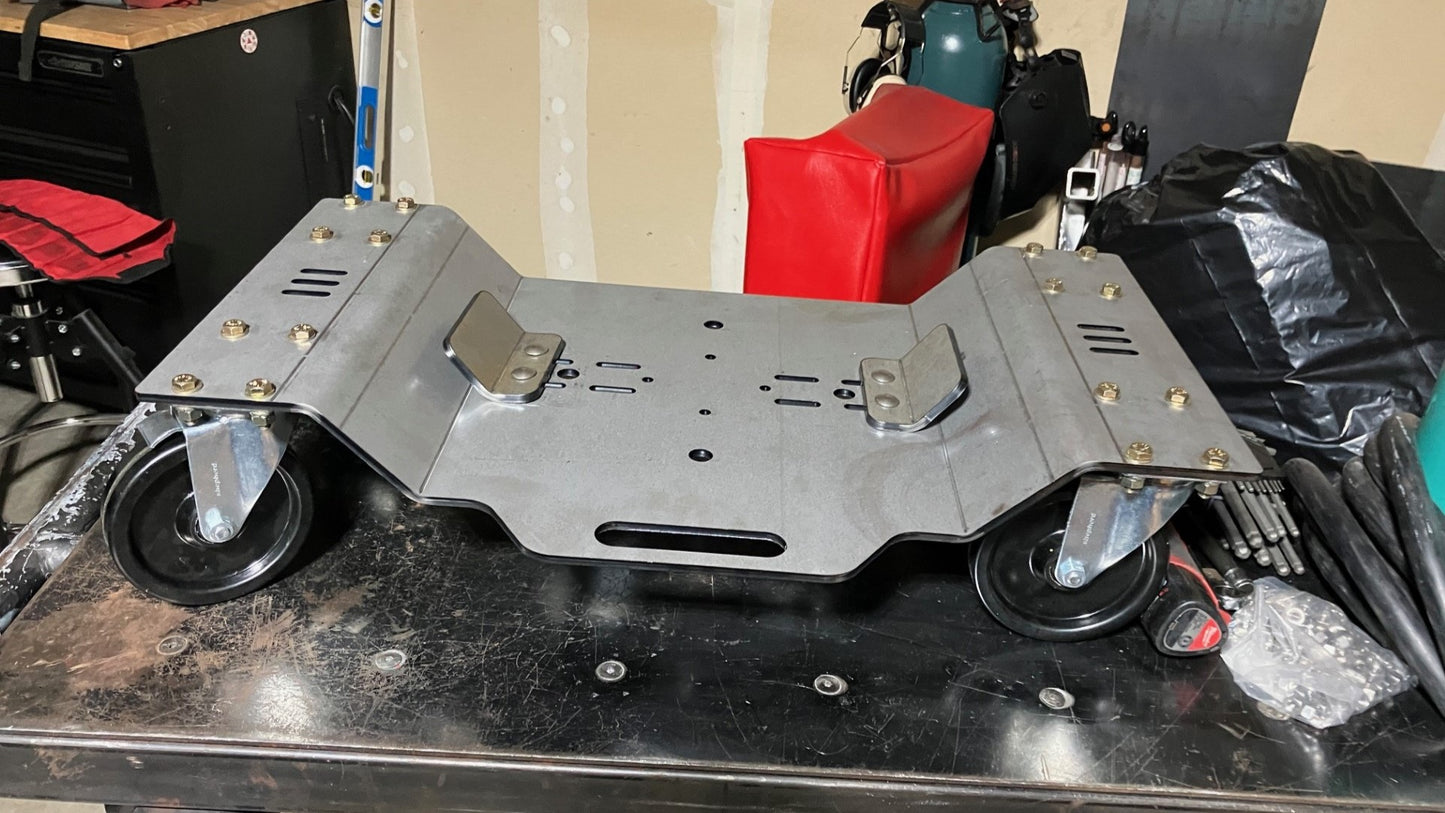

- Vehicle Dolly Plate
- Tire Stop 1
- Tire Stop 2
You will need to purchase casters. I recommend the following:
CasterHQ - 5" x 1.25" Light Duty Phenolic Wheel - 4 Locking Swivel Casters - Set of 4-1,400 lbs Cap per Set of 4 - Caster HQ Product Code HQ1350S-PL1-PH-4SB

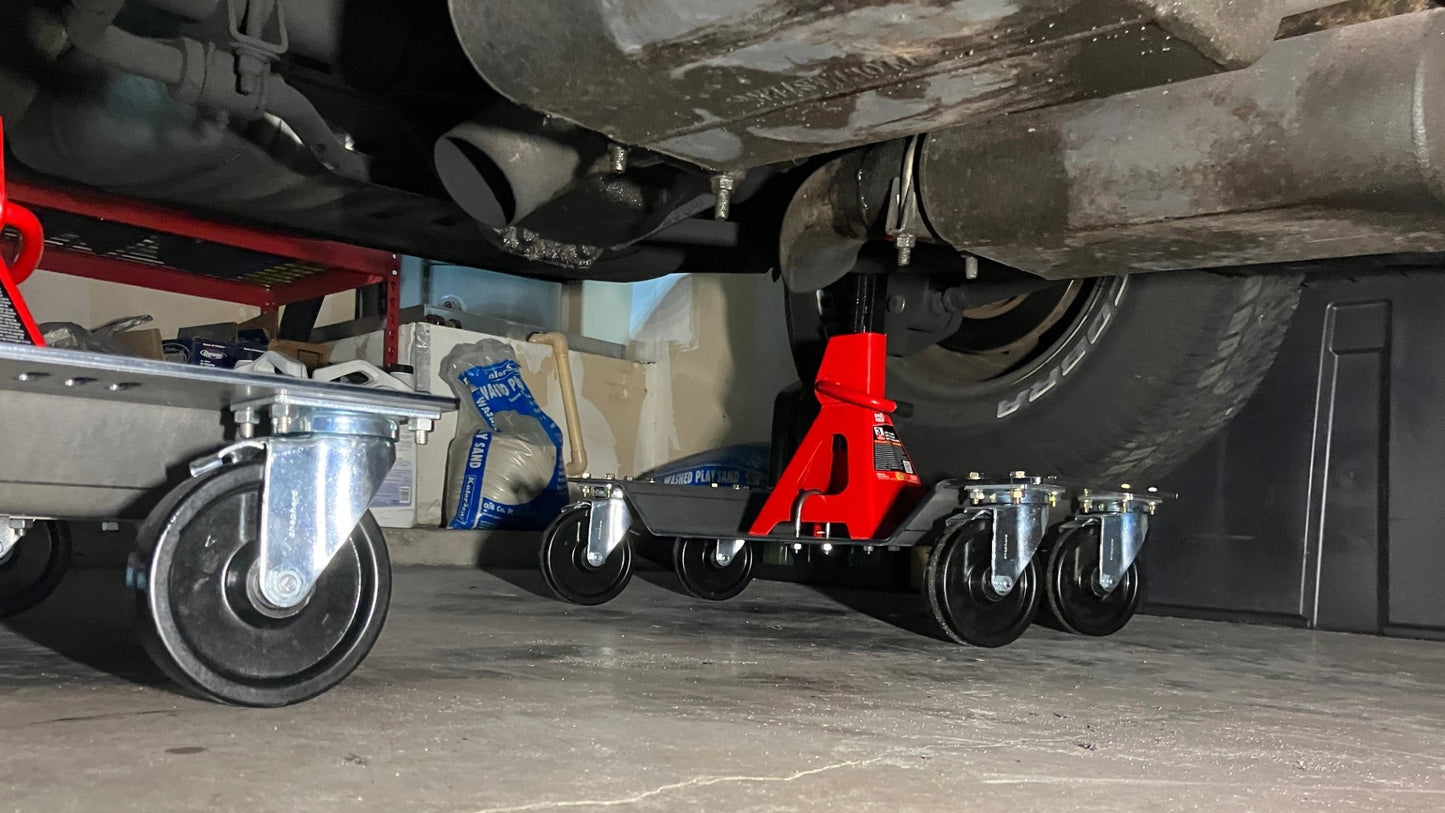

If you plan to secure a jack to the plate, I recommend the following u-bolt:
304 Stainless Steel U-Bolt with Mounting Plate, 5/16"-18 Thread Size, 2" ID - McMaster Car Part Number 8896T73

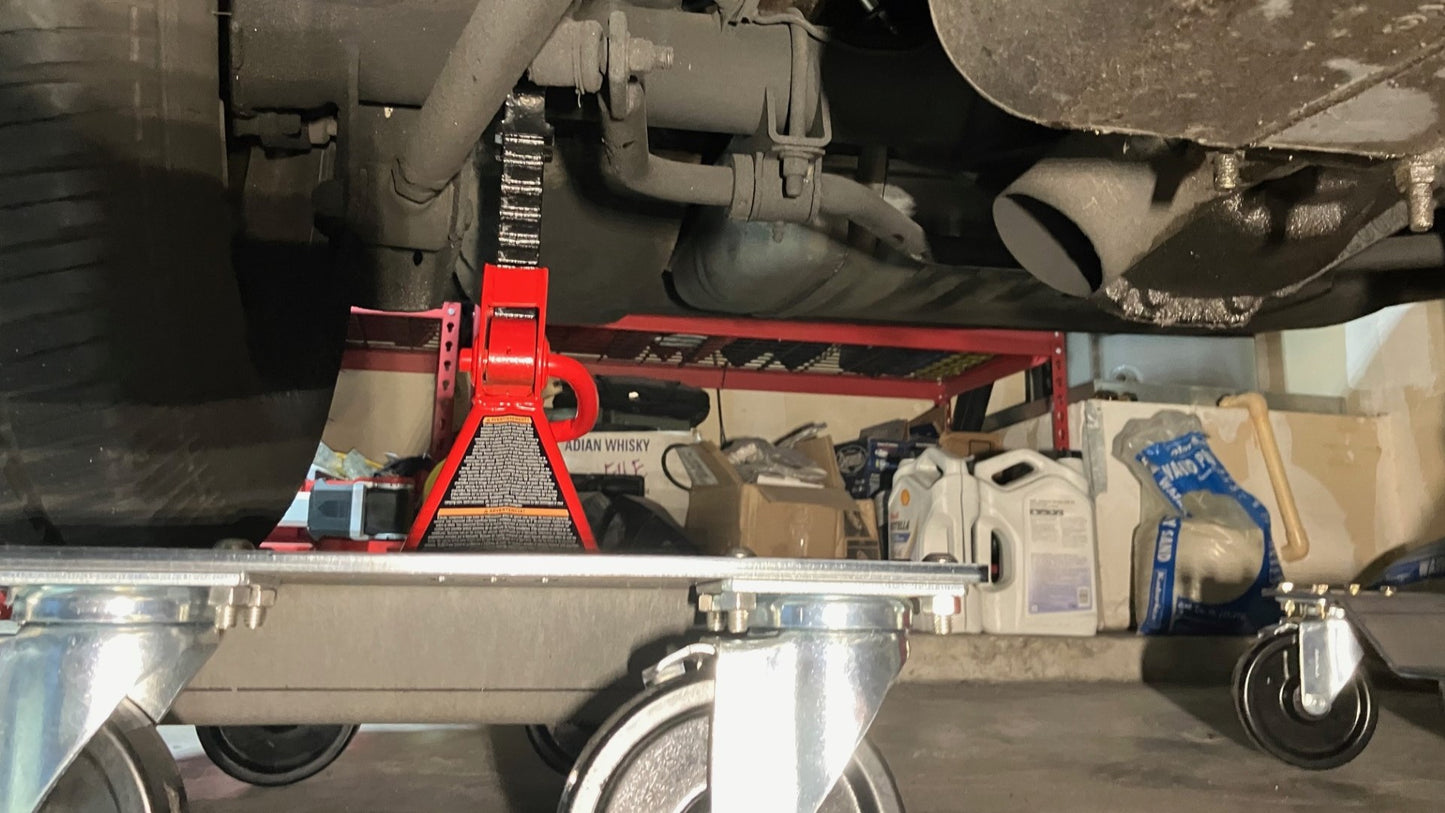

I am using the following jack:
Big Red T43202 Torin Heavy Duty Steel Jack Stands: 3 Ton
