Diversified Design and Fabrication

Porsche PDK Rear Case Removal Tool

Porsche PDK Rear Case Removal Tool

Regular price $295.00 USD
Regular price Sale price $295.00 USD
Sale Sold out

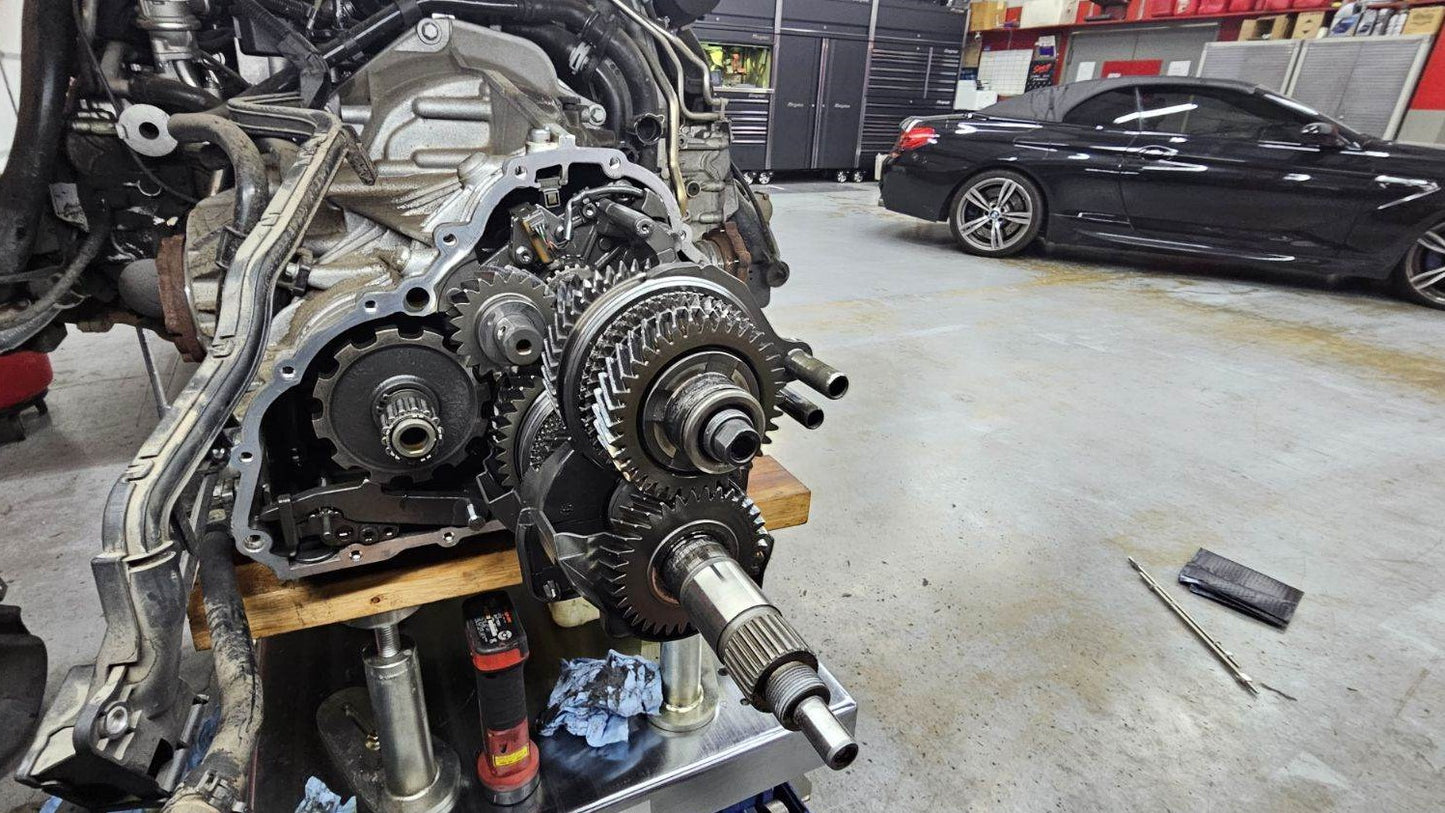

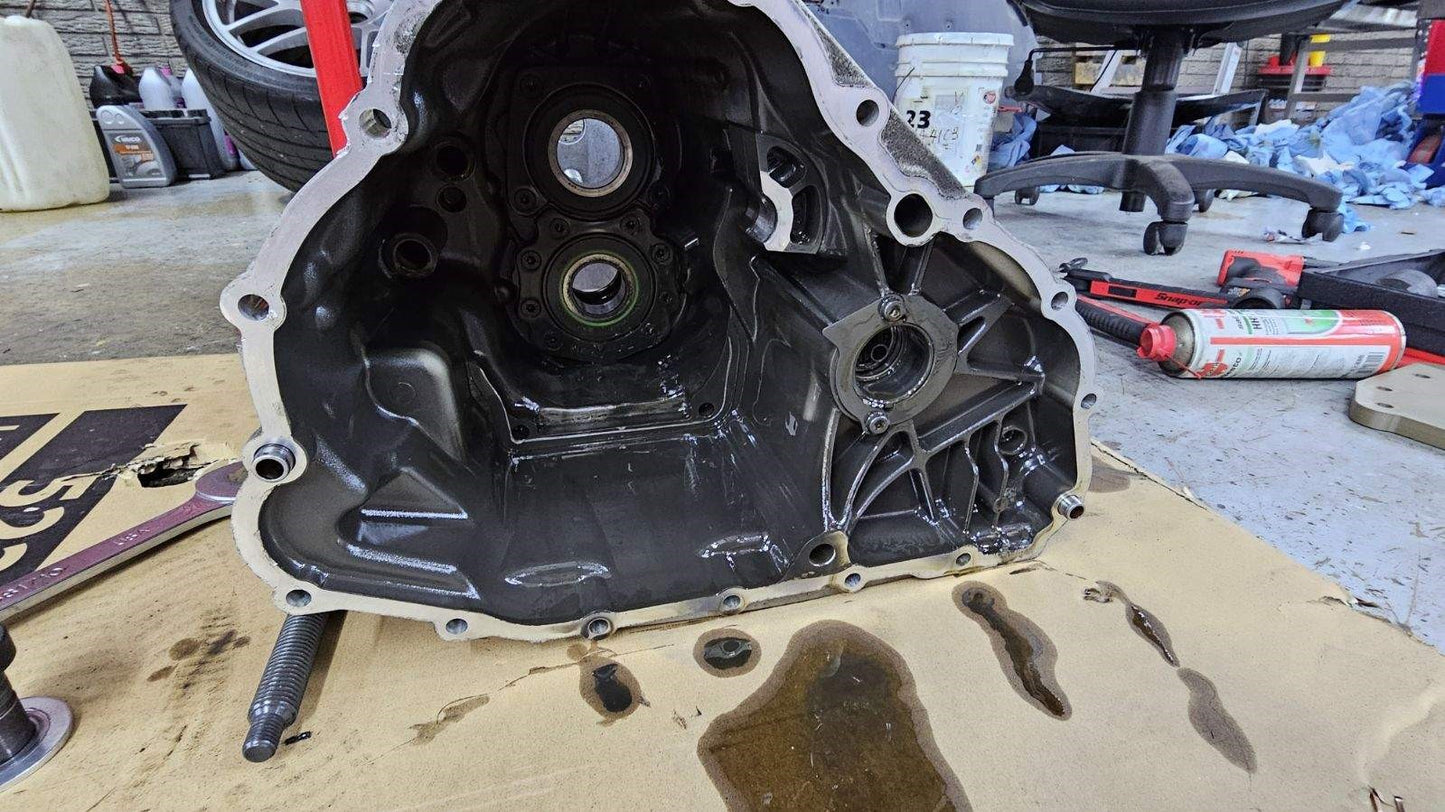

The Porsche PDK transmission requires a specialty tool to pull apart the rear case.  The current offerings on the market are not effective, and the proper tool is not currently offered for sale.  Without removing the rear case, fixing the transmission often involves a $20k replacement, if not more.

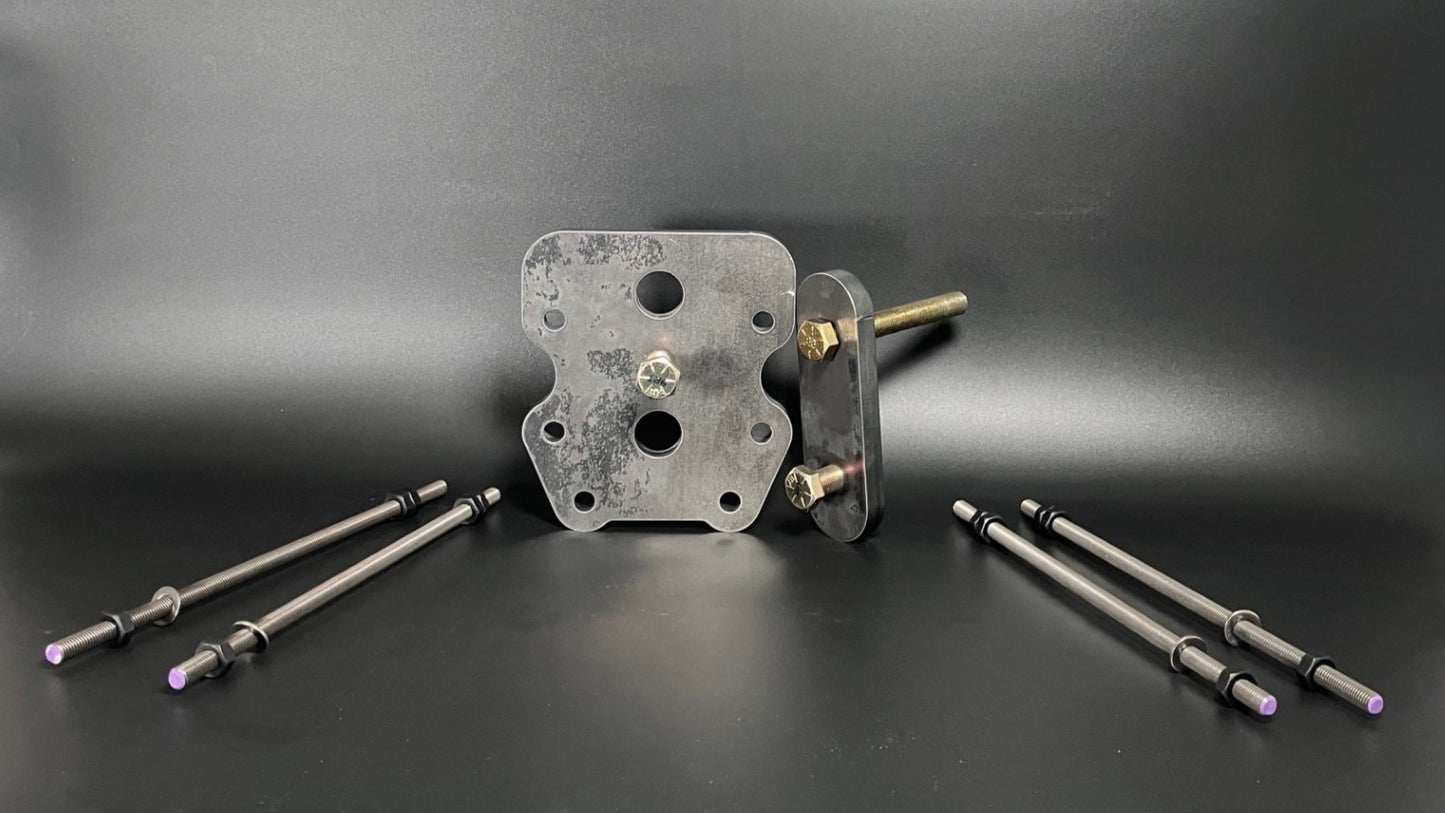

This tool is laser cut out of 5/8" A36 steel and works with the 2WD and AWD PDK transmission.

It provides 2 options for removing the case:

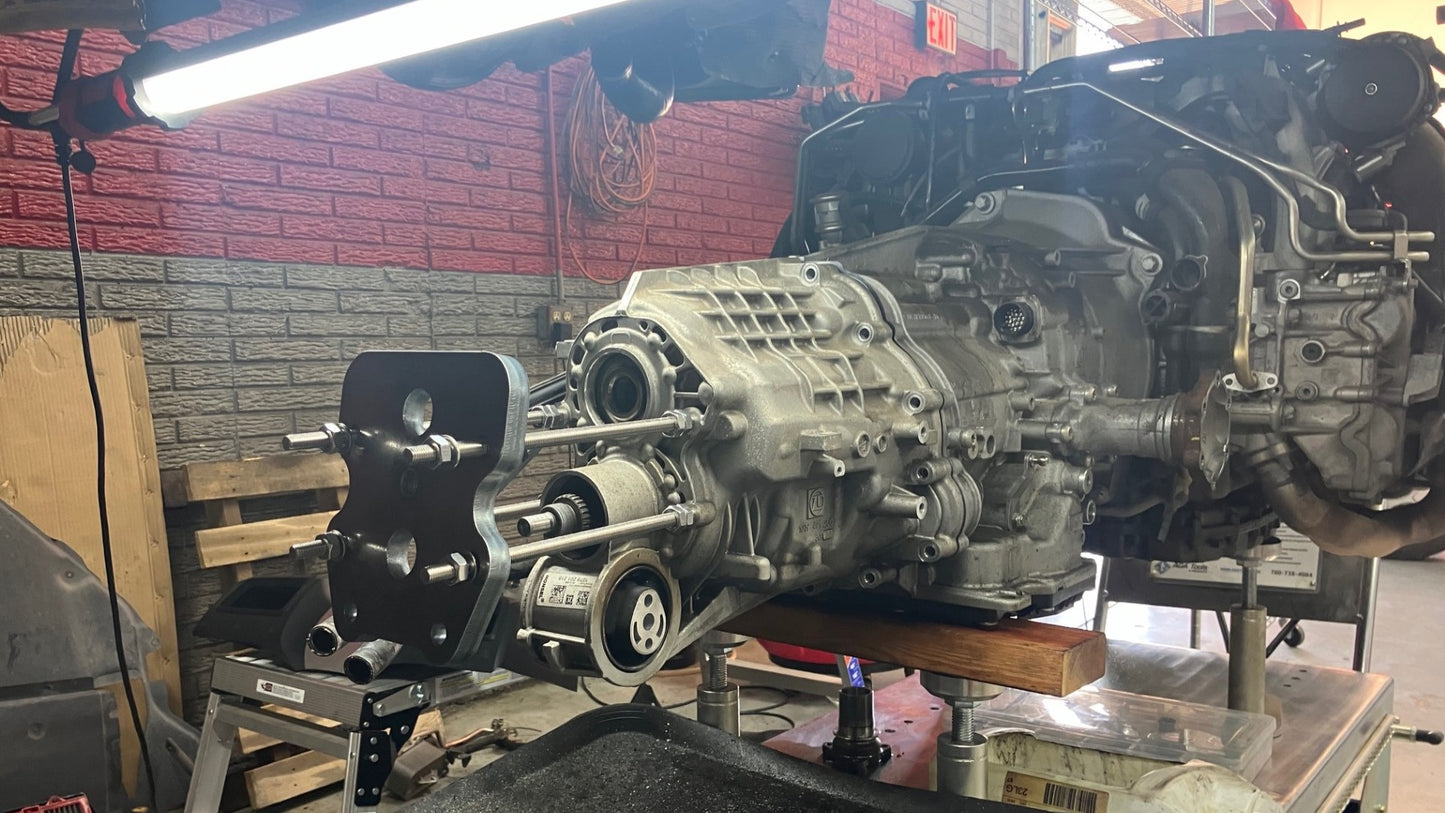

1. By using the intermediate plate, you can thread in the 5/8" x18 hex bolts and press against the input/output shafts with a socket on the end to protect the shafts. Then using a 3rd 5/8 x 18 hex bolt, you can thread it into the intermediate plate to remove the case.

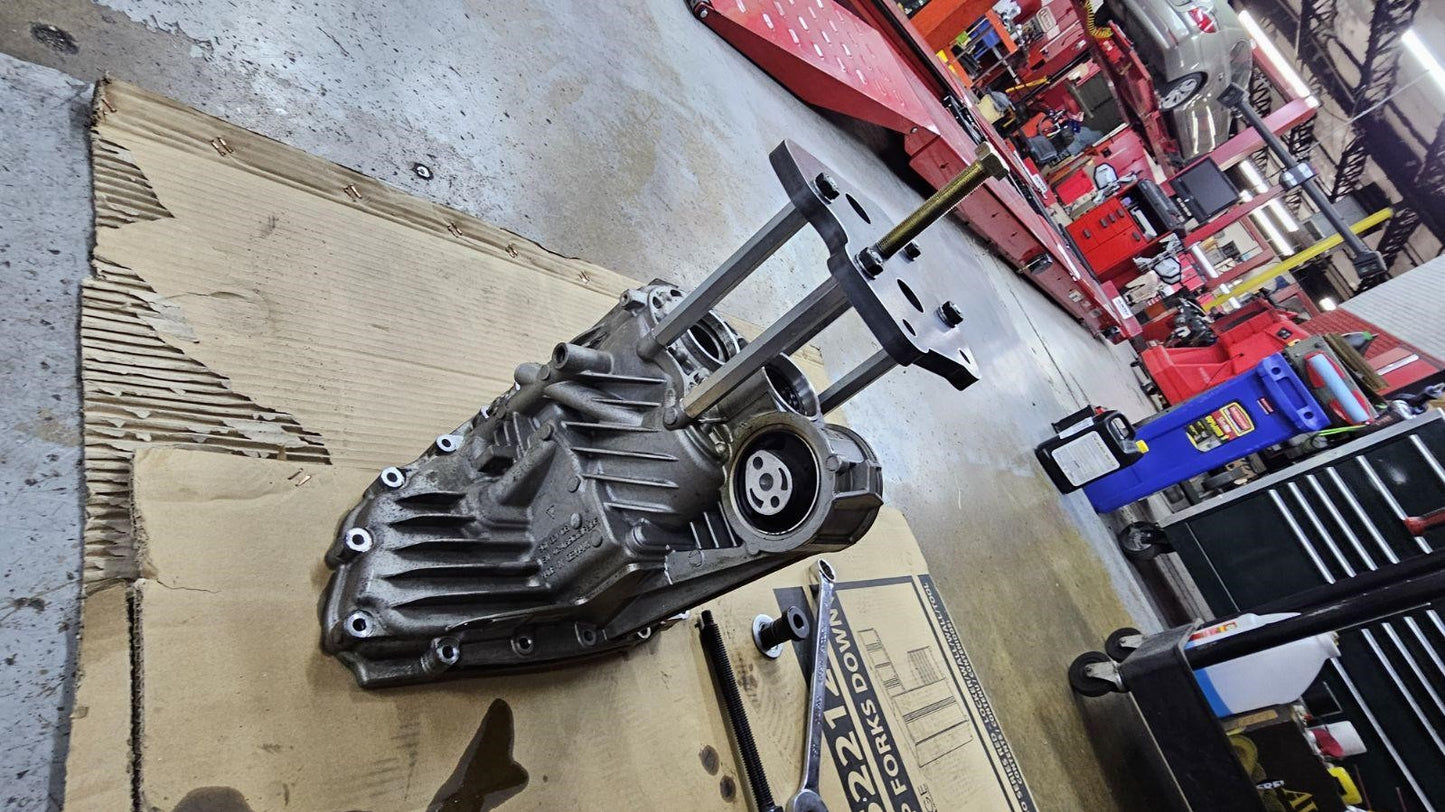

2. By using the 4x 10mm all-thread, you can alternate between rods and slowly tighten the nuts on the end. With the intermediate plate and 3x hex bolts installed, this method will also remove the case one corner at a time.

Designed and Manufactured in the USA

Hardware info:  USA made is prioritized, however may be globally sourced if needed due to lead times.

5/8"-18 hex bolt, 2" x2

5/8"-18 hex bolt, 5" x1

M10 x 1.5 threaded rod, 250mm x4

M10 x1.5 hex nut, x4

M10 washer, x4

Shipping Info:

Weight:  10 lbs

Box: TBD
