GM Truck (CUCV) - Winch Mount v1.1

Description:

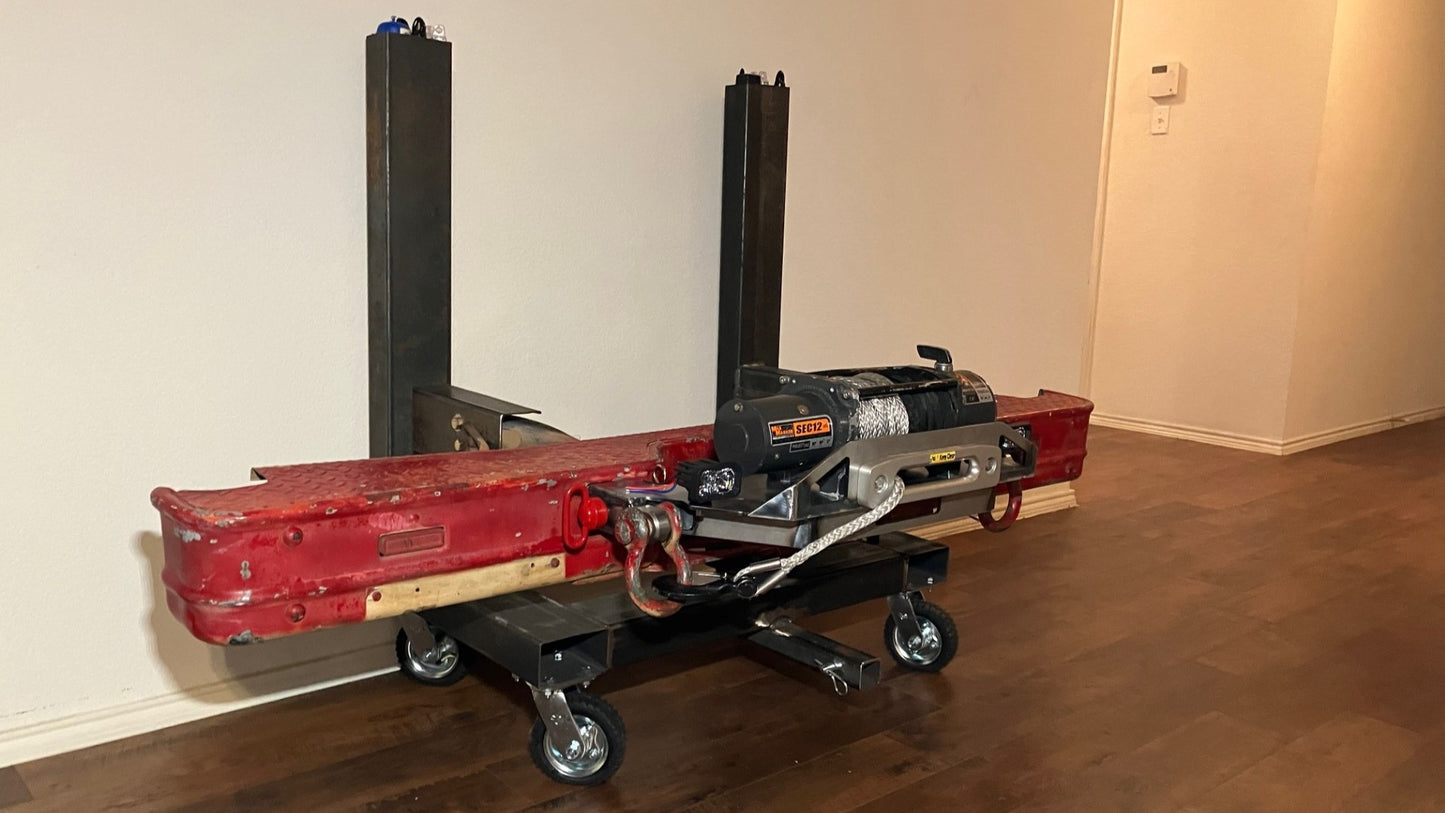

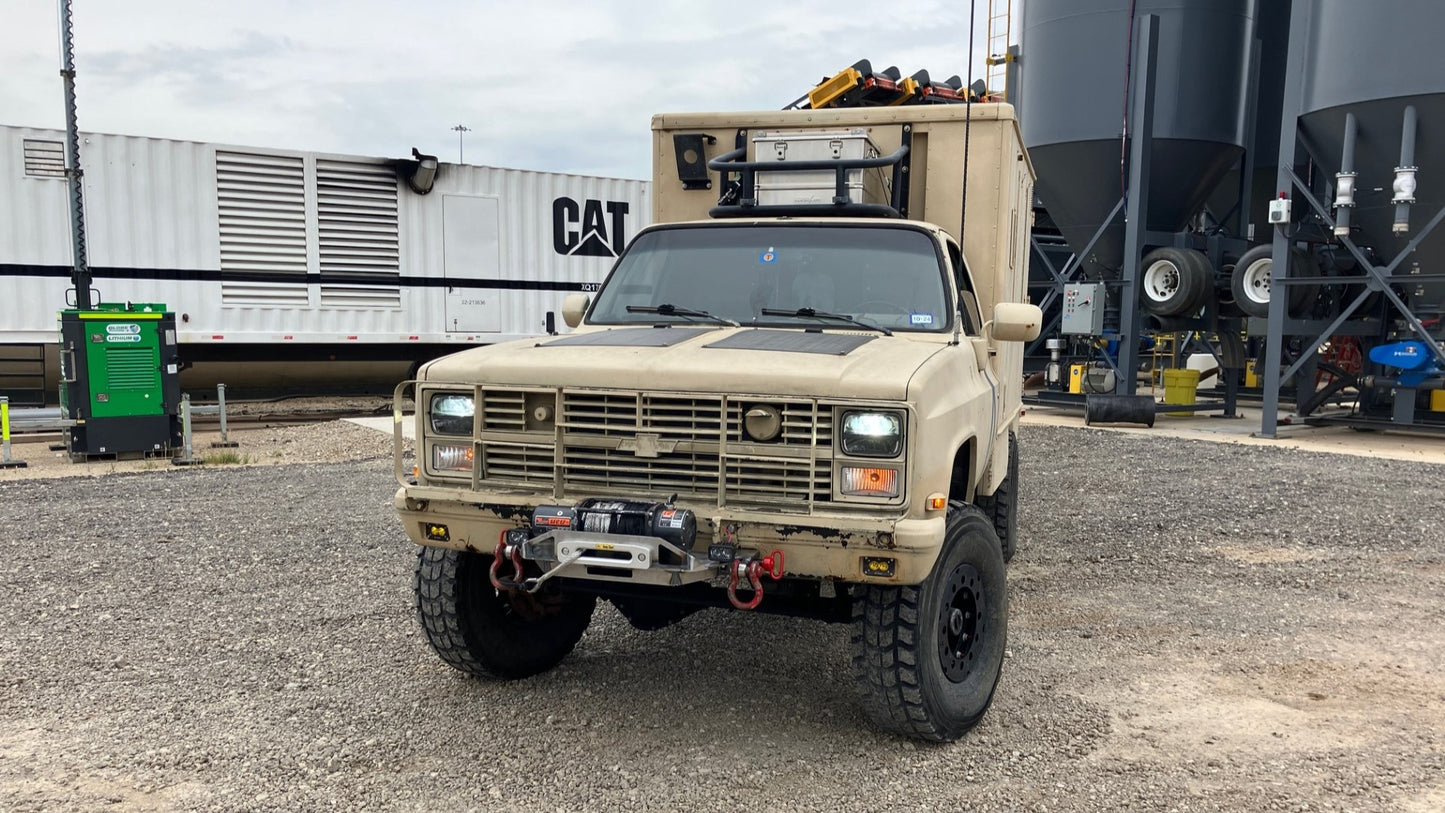

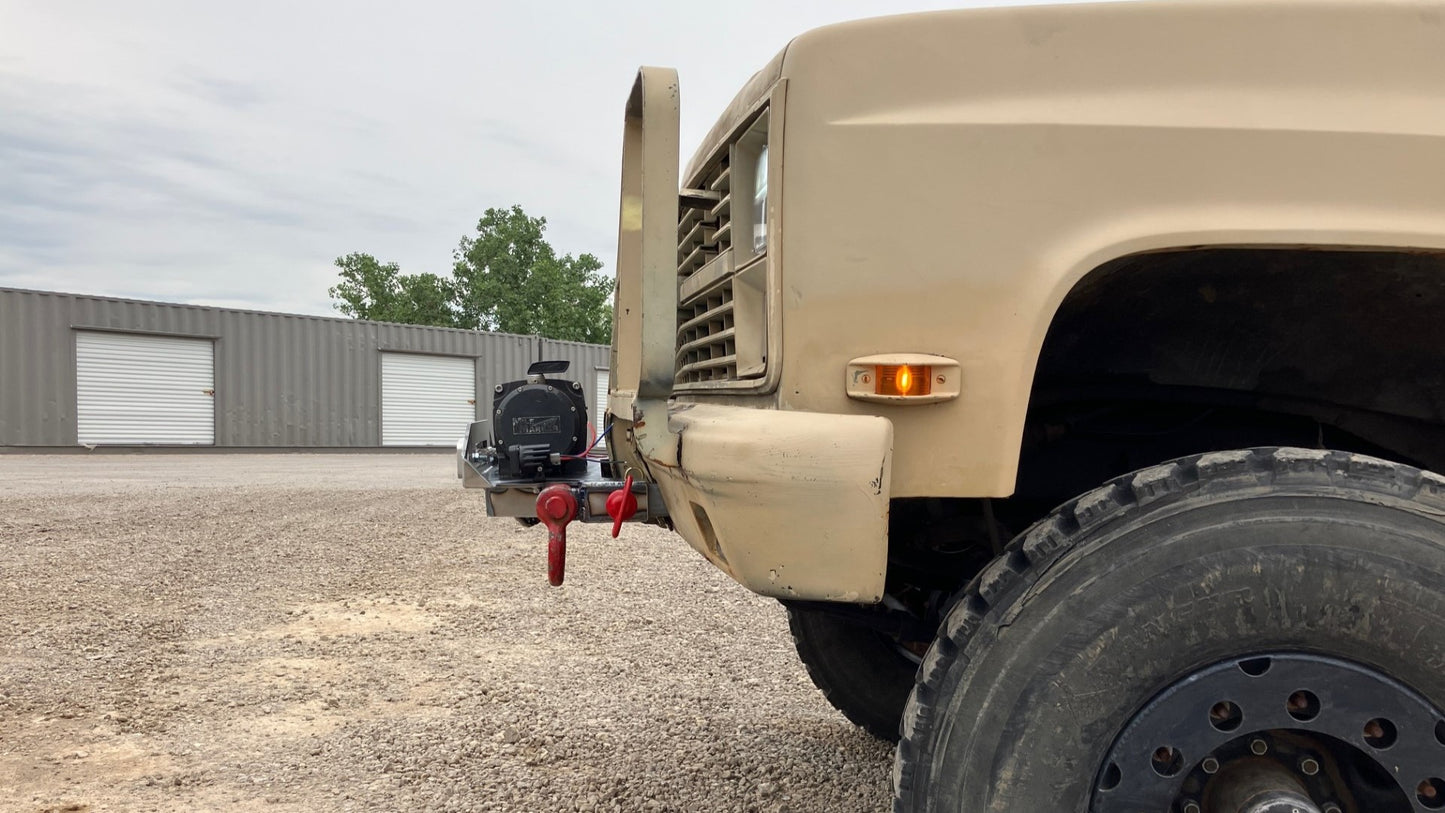

The CUCV is based on a 1984 Chevy K30 and was produced by GM for the military from 1984-1987.  This winch mount is designed to work with the CUCV without any cutting or modifications to the truck.  It is mounted on the shackle mounts and can be used on the front or rear of the M1008 and M1028.  For the M1009, M1010, and M1031 it will only fit on the front.

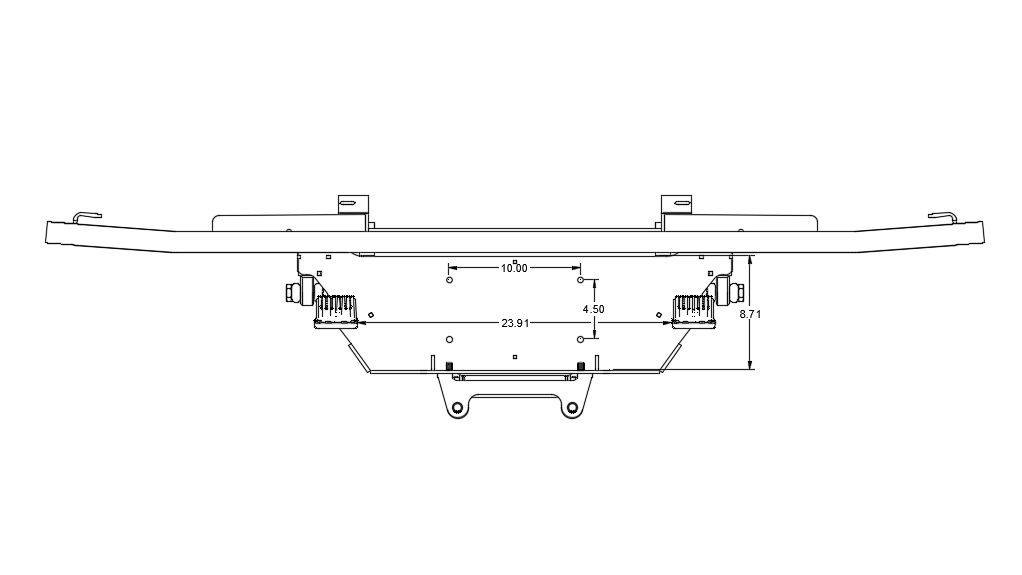

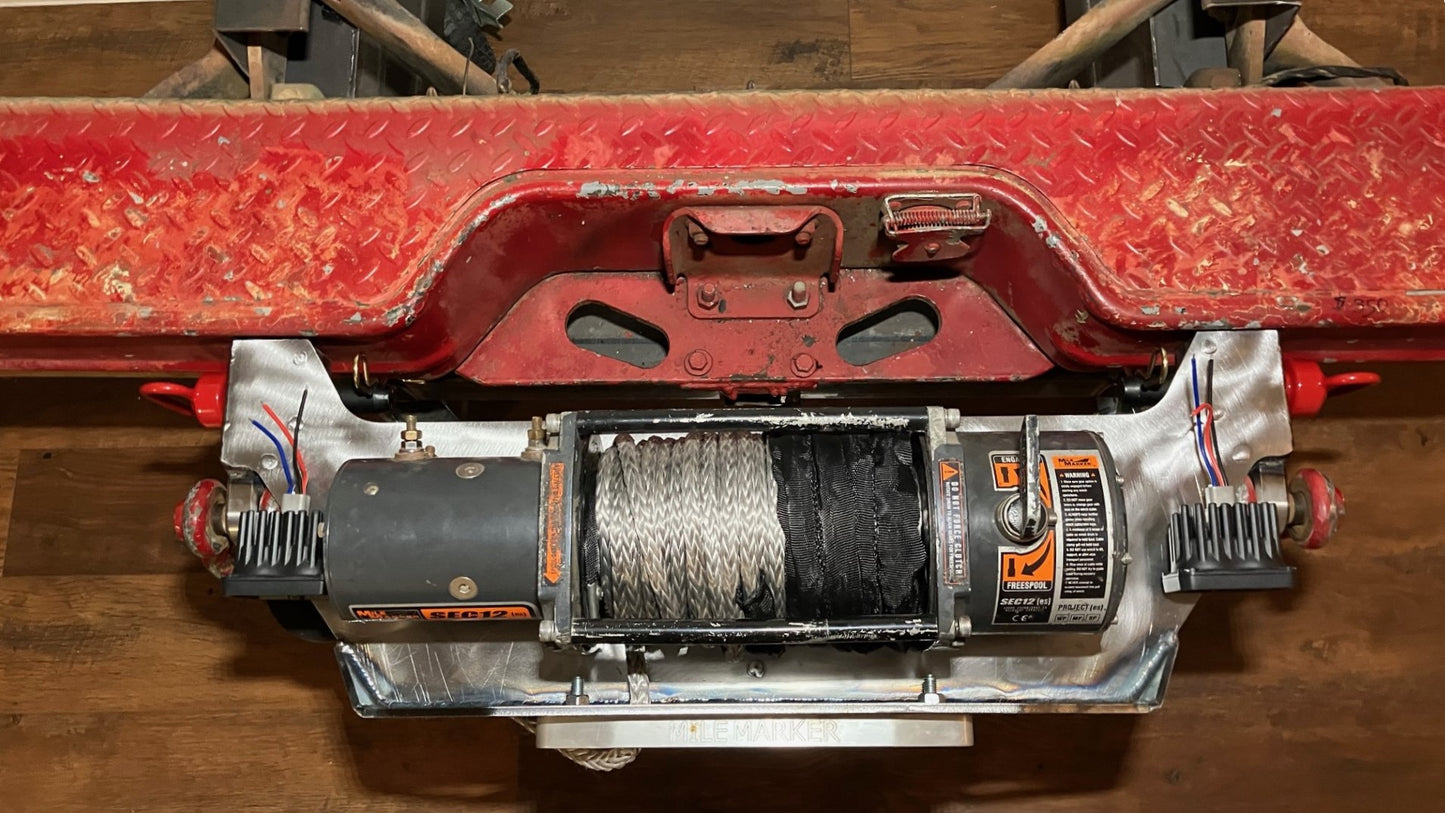

Version 1.1 is all laser cut 1/4" HRPO A36 steel, gusseted, and TIG welded.  The winch bolt pattern is 10" x 4.5" and the fairlead bolt pattern is 10".  The lights in the design and pictures are Diode Dynamics SSC2s.  Shackle mounts and mounting hardware are included.  Winch, fairlead, shackles, and lights are not included.  Ships bare metal ready for paint or powder coat.  Tested for use up to a 12,000 lbs winch.

The DIY version has tab and slot to aid in welding.  Instructions coming soon.

Designed and Manufactured in the USA

Shipping info:

Weight: 45 lbs

Box:  36" x 12" x 8"
