GM Truck '81-'87 ('91) - Front Bumper
GM Truck '81-'87 ('91) - Front Bumper
Couldn't load pickup availability
Lead times: 4-6 weeks.
Description:

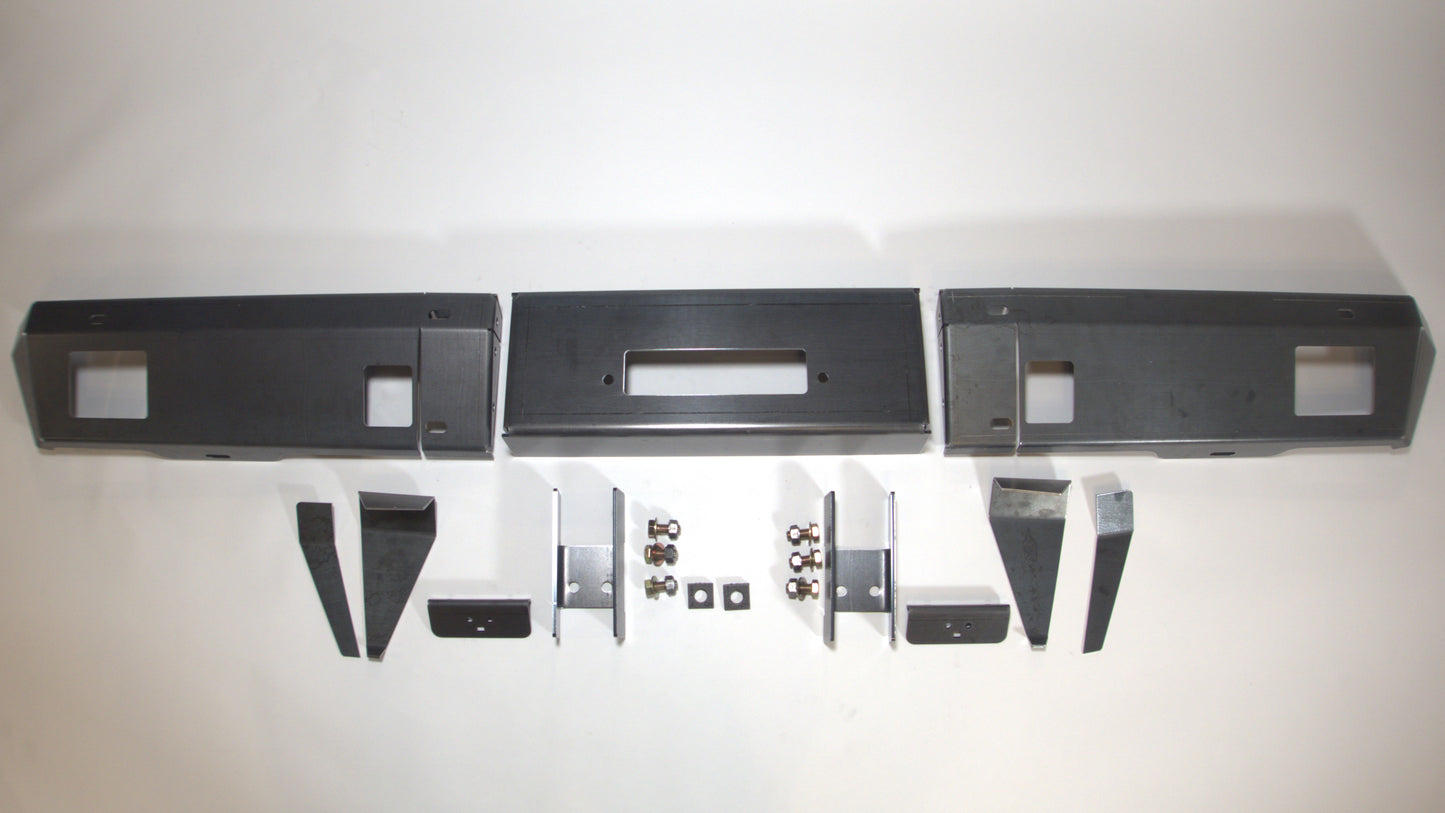

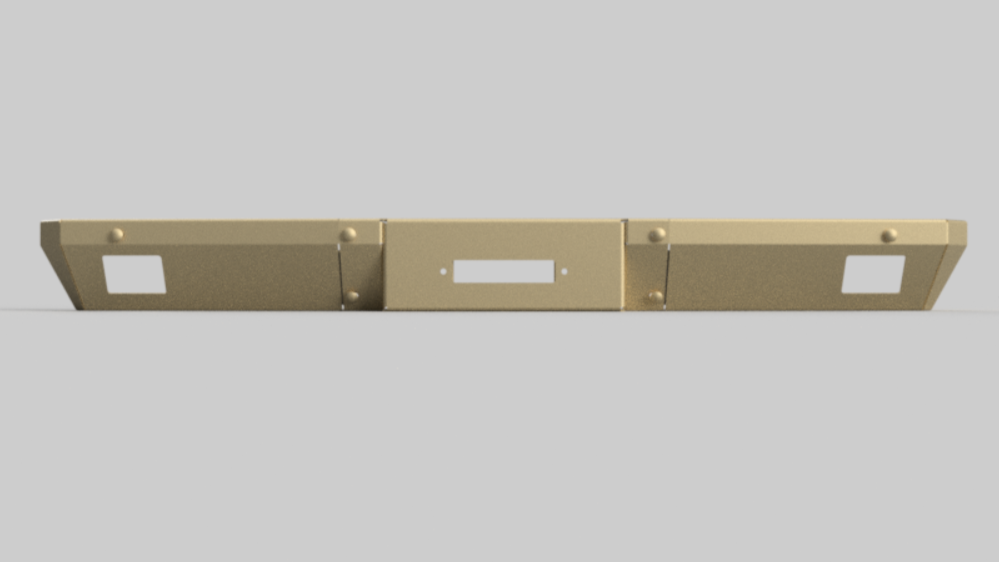

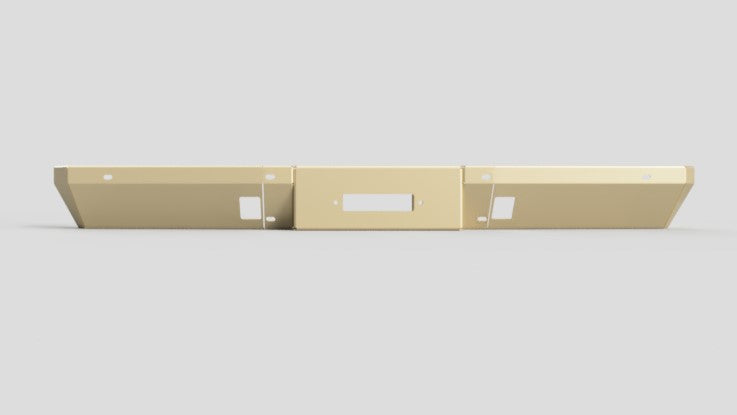

This bumper is designed to work with the CUCV brush guard and shackles. It is laser cut, CNC bent and designed as 3 main components that bolt together. Ships bare steel ready to paint or powder coat.
It features:
3/16" center section with a winch opening (not a winch mount)
10 gauge outer wings that bolt to the center section
Hardware info: All Grade 8. USA made is prioritized, however may be globally sourced if needed due to lead times.
1/2"-13 hex bolt, 2" x8
1/2" -13 hex bolt, 1.25" x6
1/2" washer x6
1/2"-13 hex nut x8
1/2"-13 weld nut x6
1/4"-20 hex bolt, 7/8" x4
1/4" washer x4
1/4" lock washer x4
1/4"-20 hex nut, x4
1/4" round bar - 6ft
Designed and Manufactured in the USA
Shipping info:
Weight: 55 lbs
Box: 36" x 12" x 12"
