This is a download only. No physical parts are included.

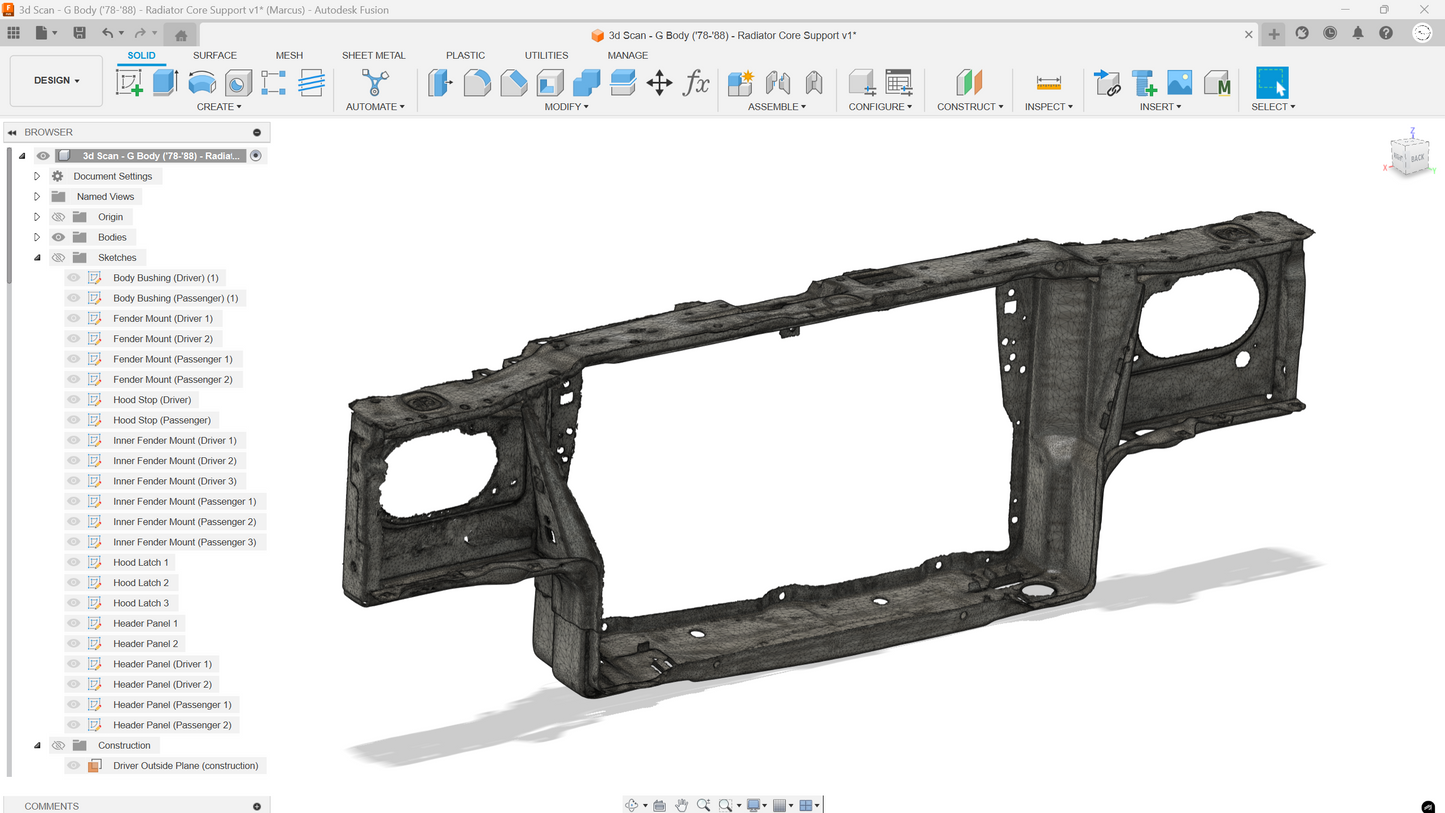

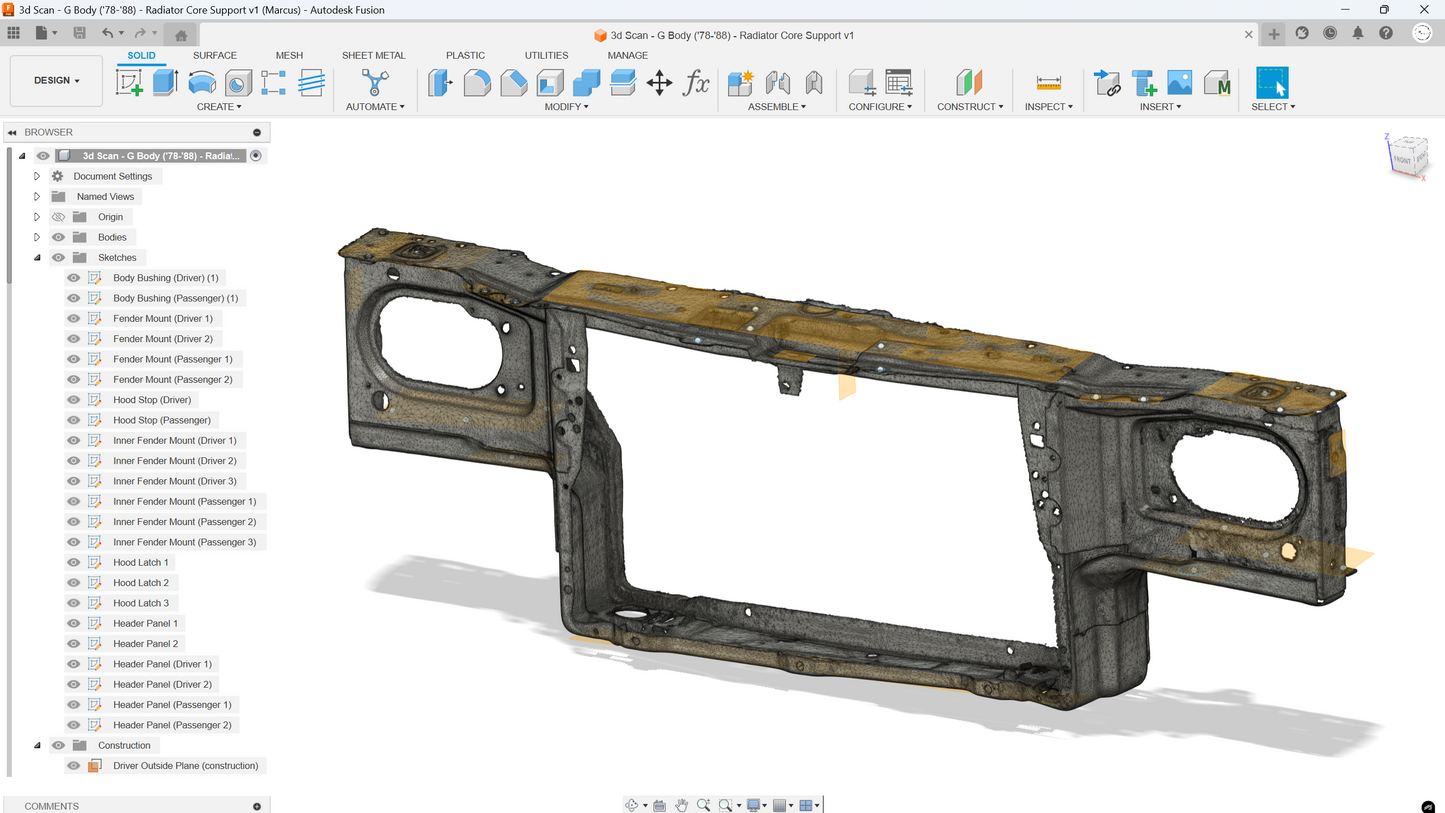

This listing is for the 3d scan (.stl) of the G Body Radiator Core Support. The download also includes an Autodesk Fusion parametric timeline (.f3d) of the imported mesh, planes, and mounting locations. It is aligned to the xyz coordinate system in both file formats.

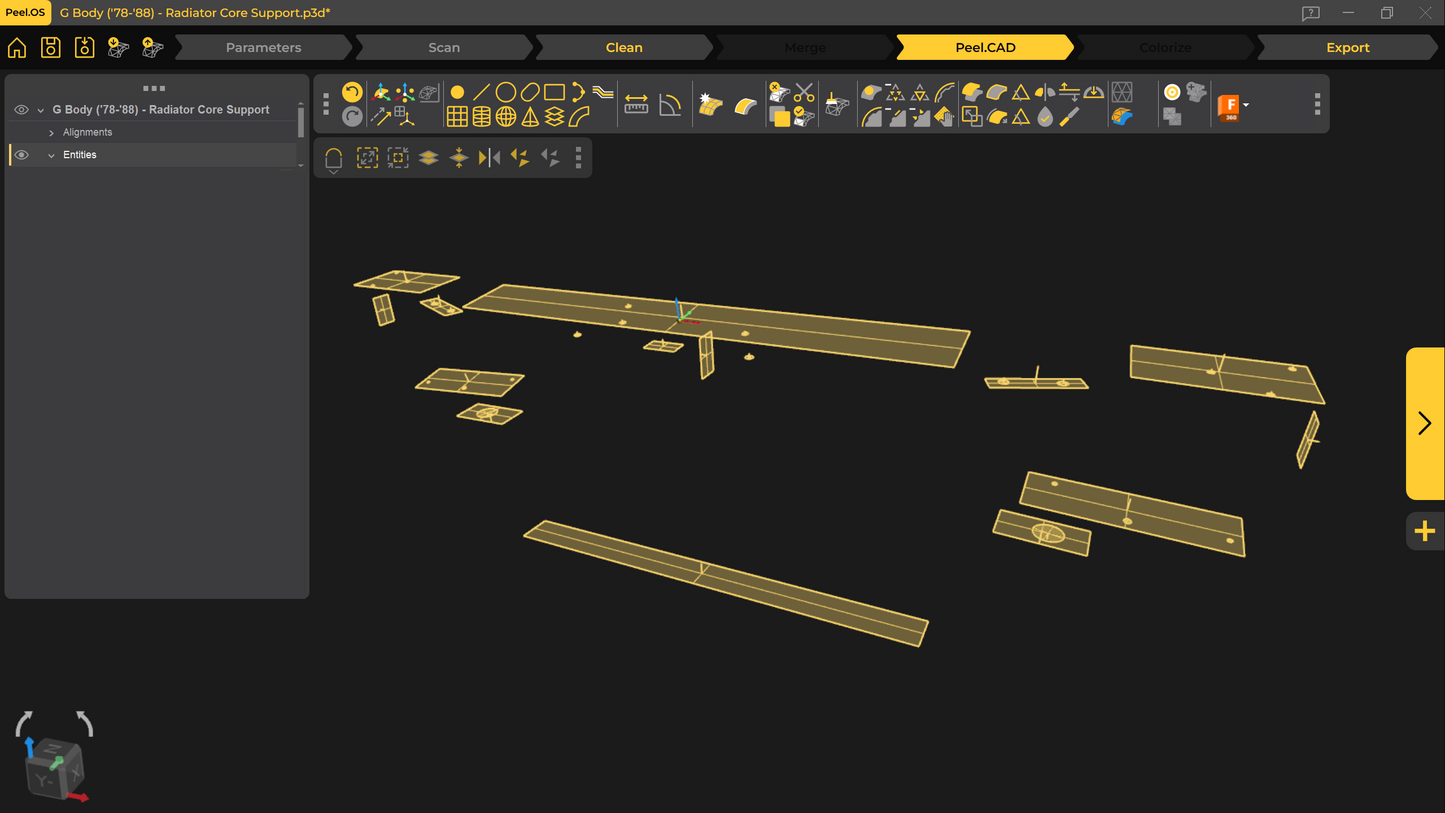

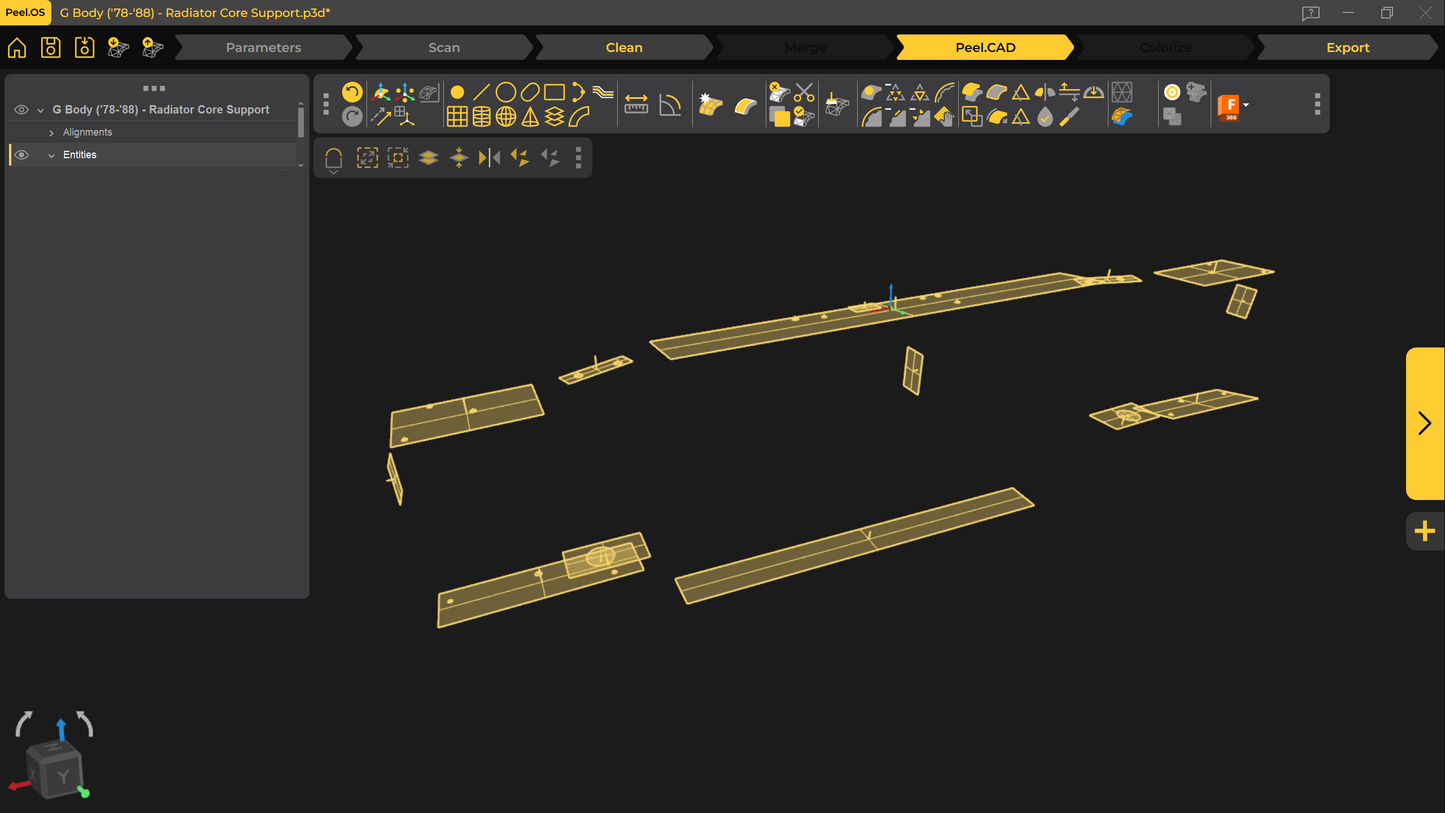

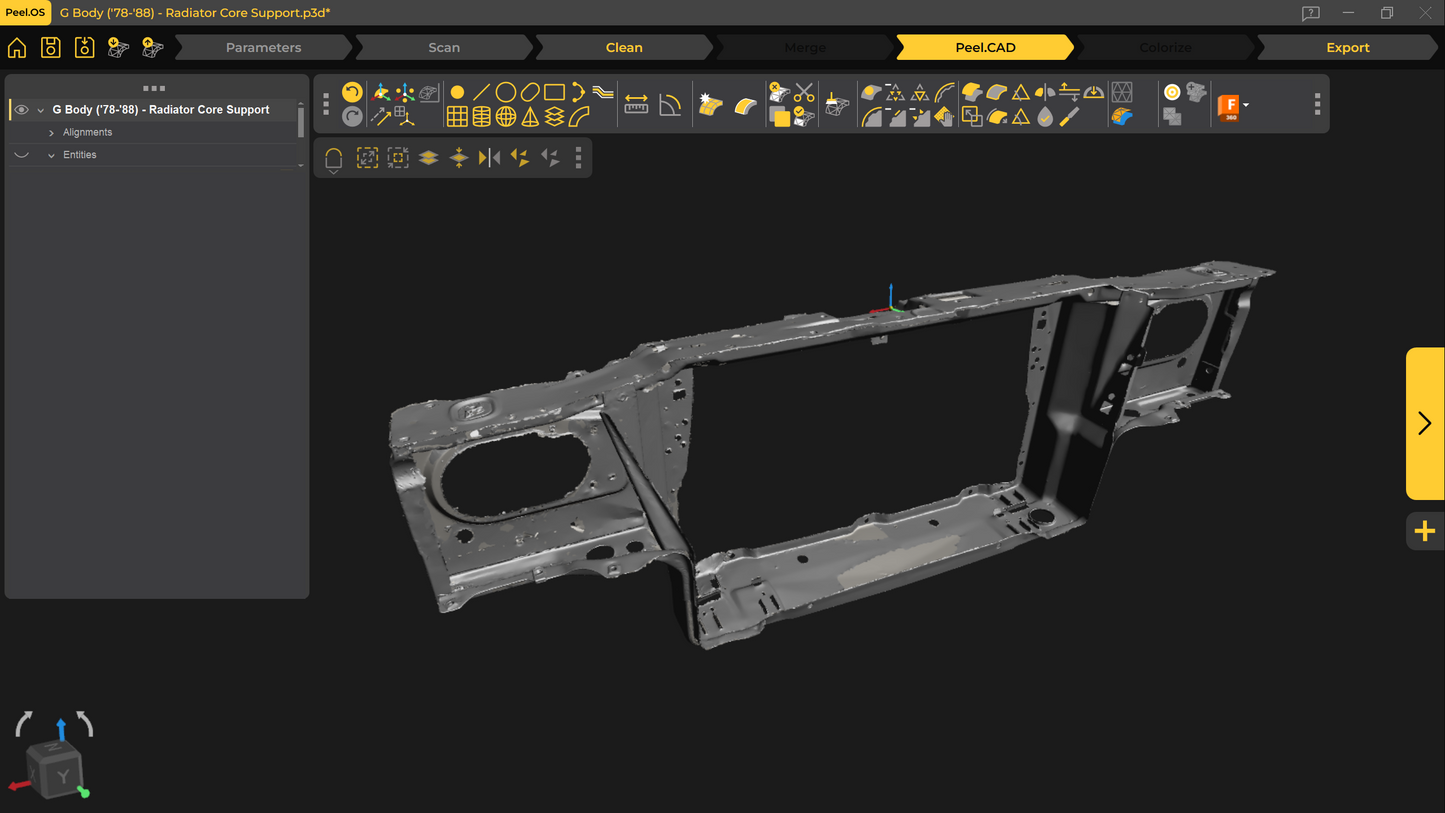

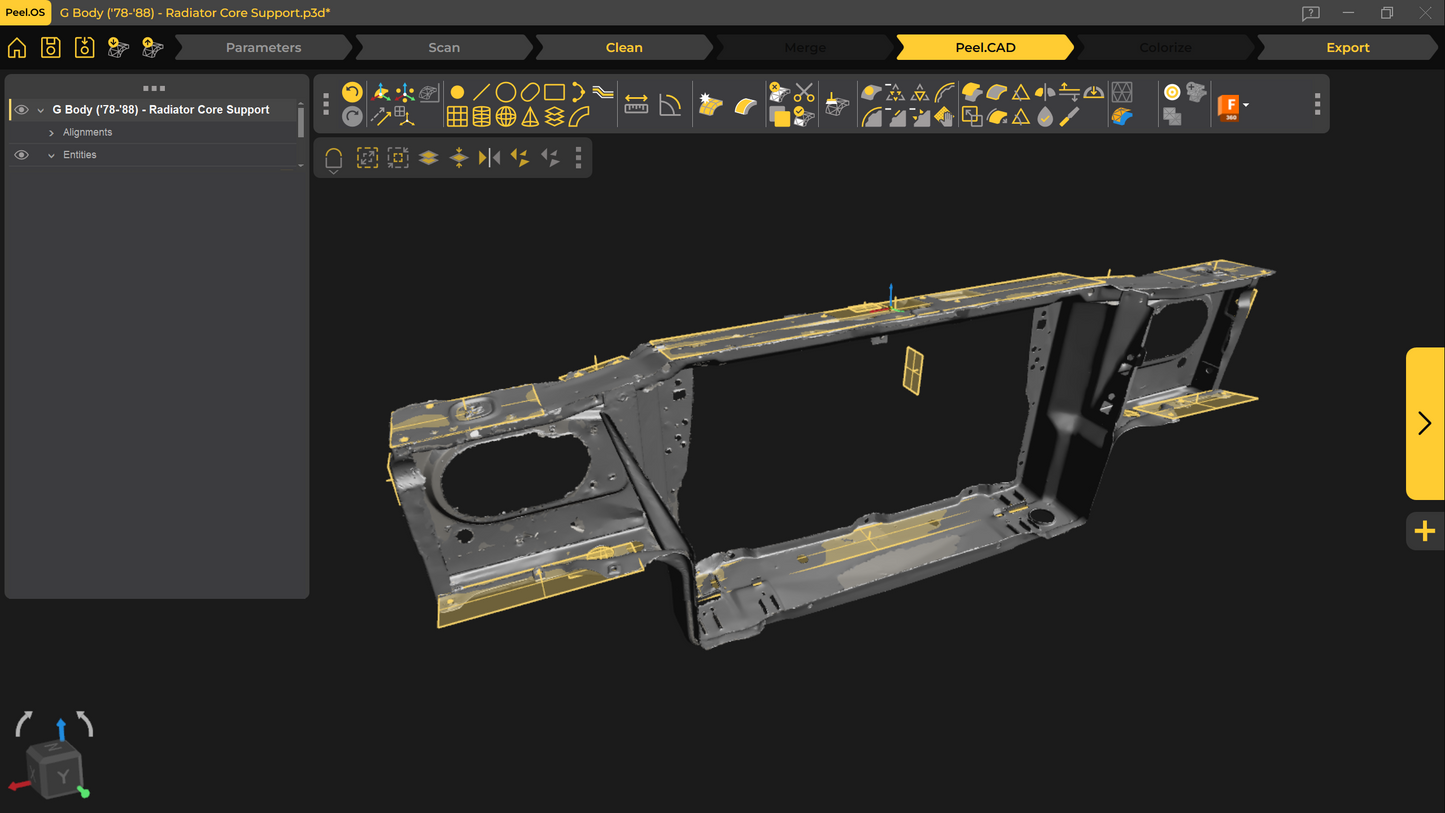

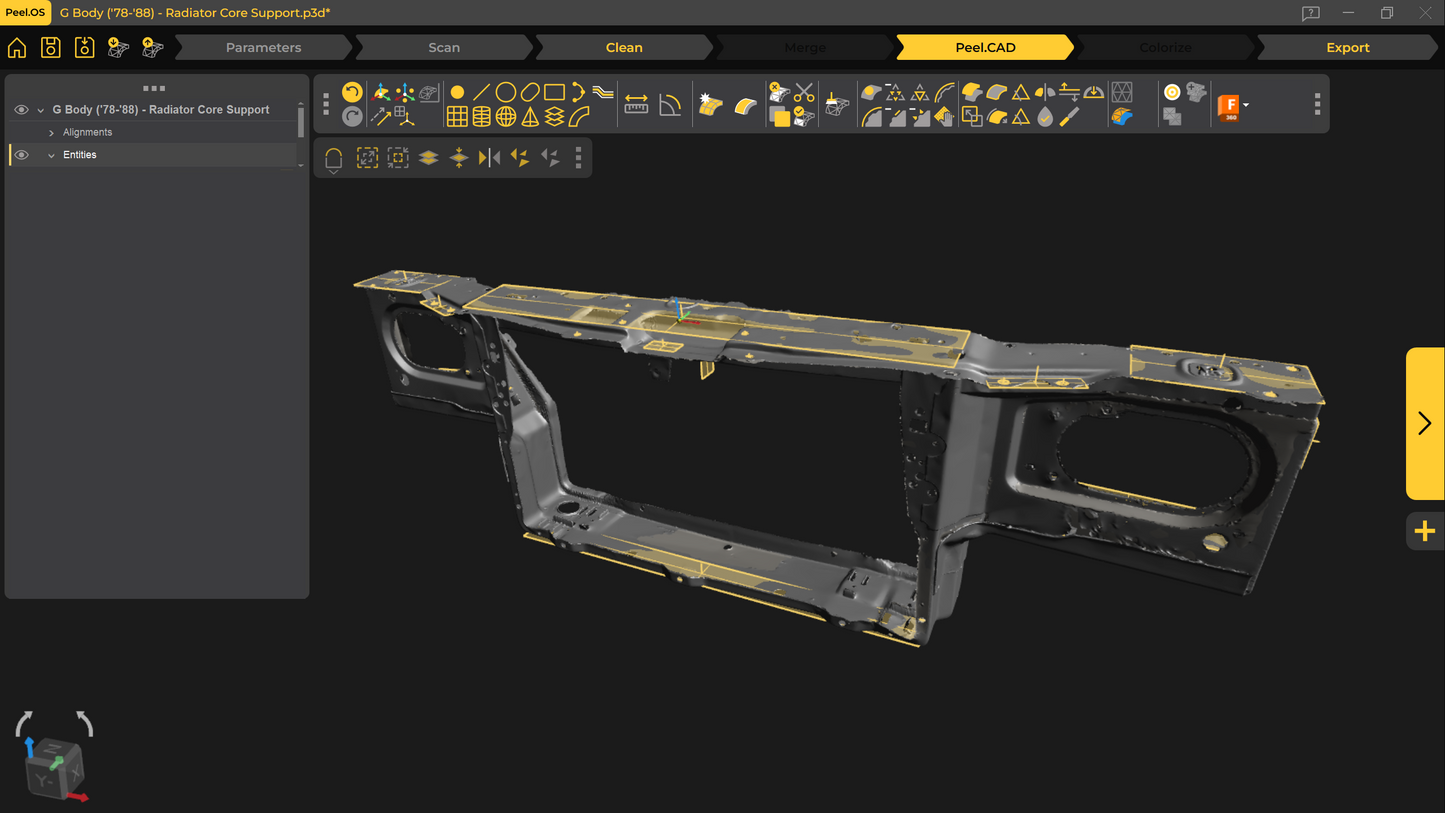

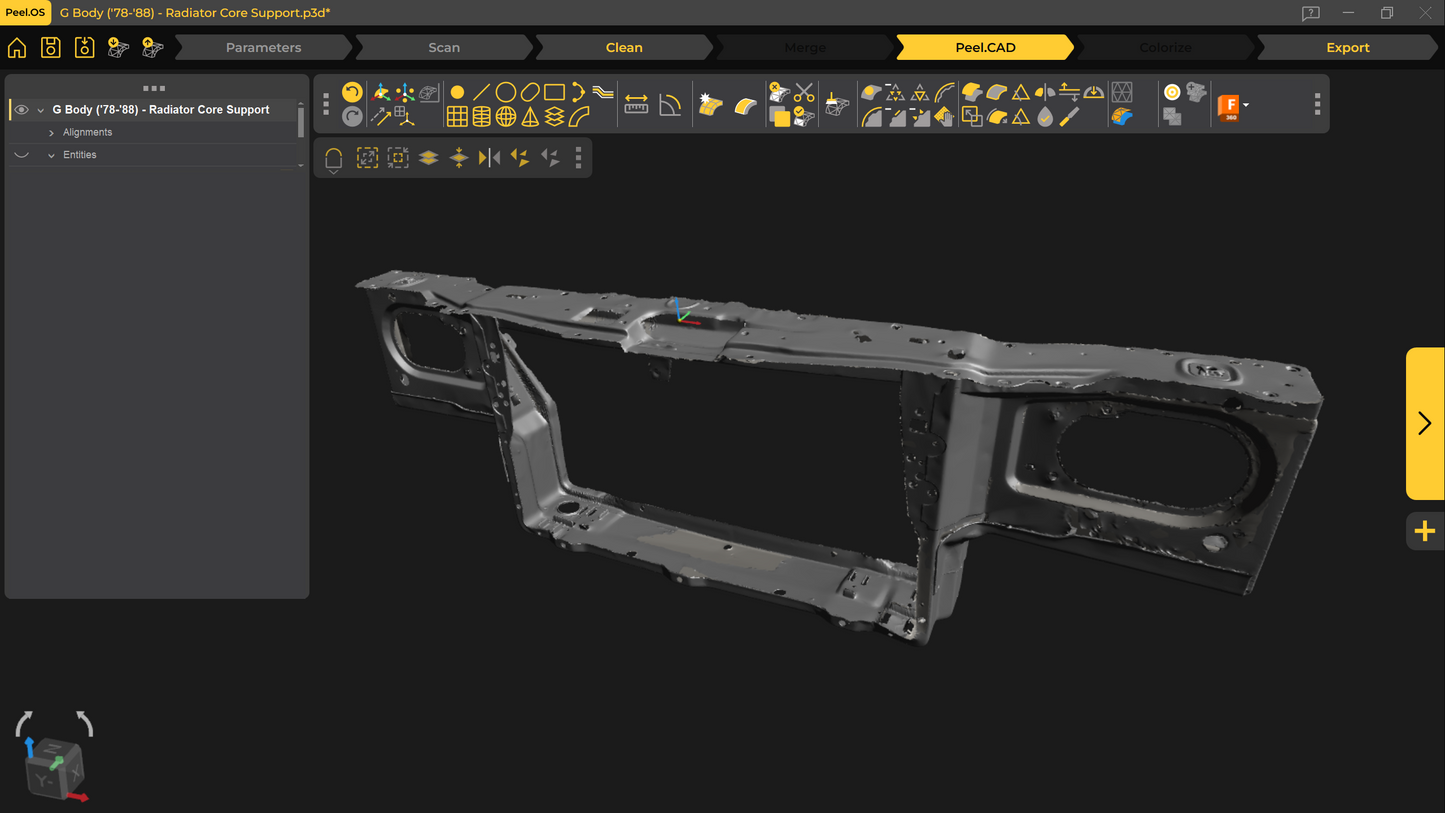

This scan was completed with the Peel 3. When importing the STL into Autodesk Fusion, make sure to import the mesh in millimeters. The construction planes should be used for reference only. They were created to locate the features.
