This is a download only. No physical parts are included.

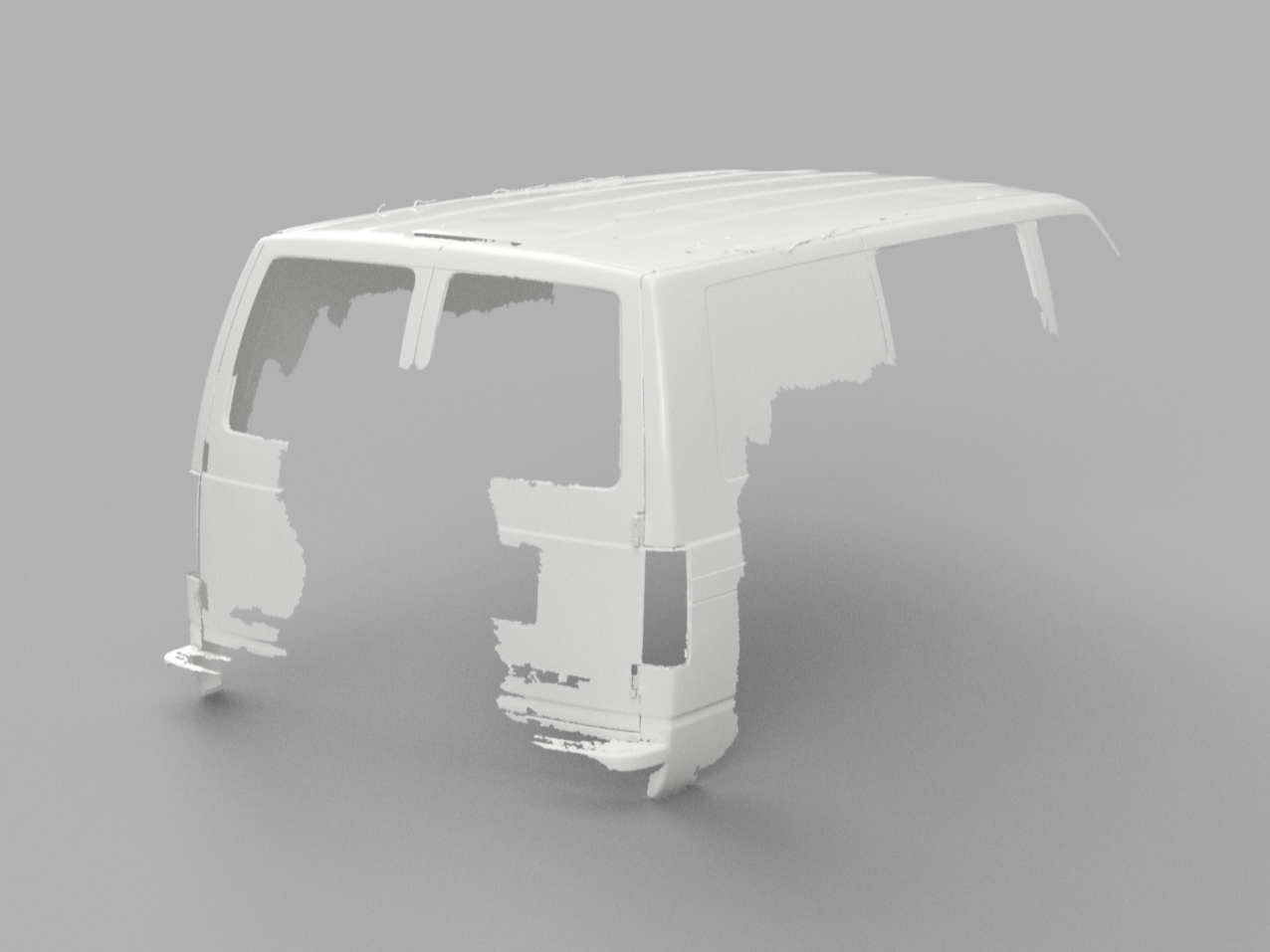

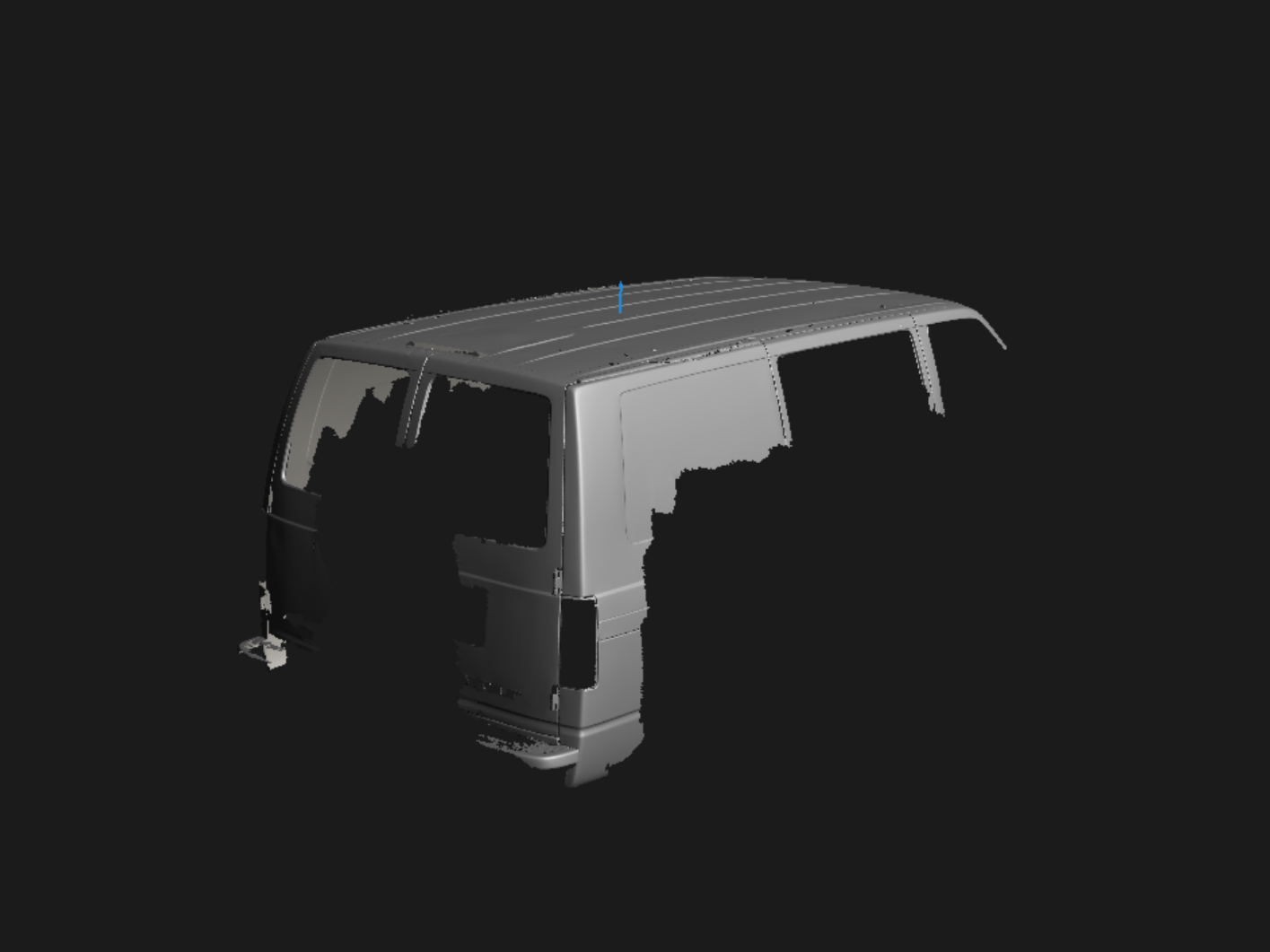

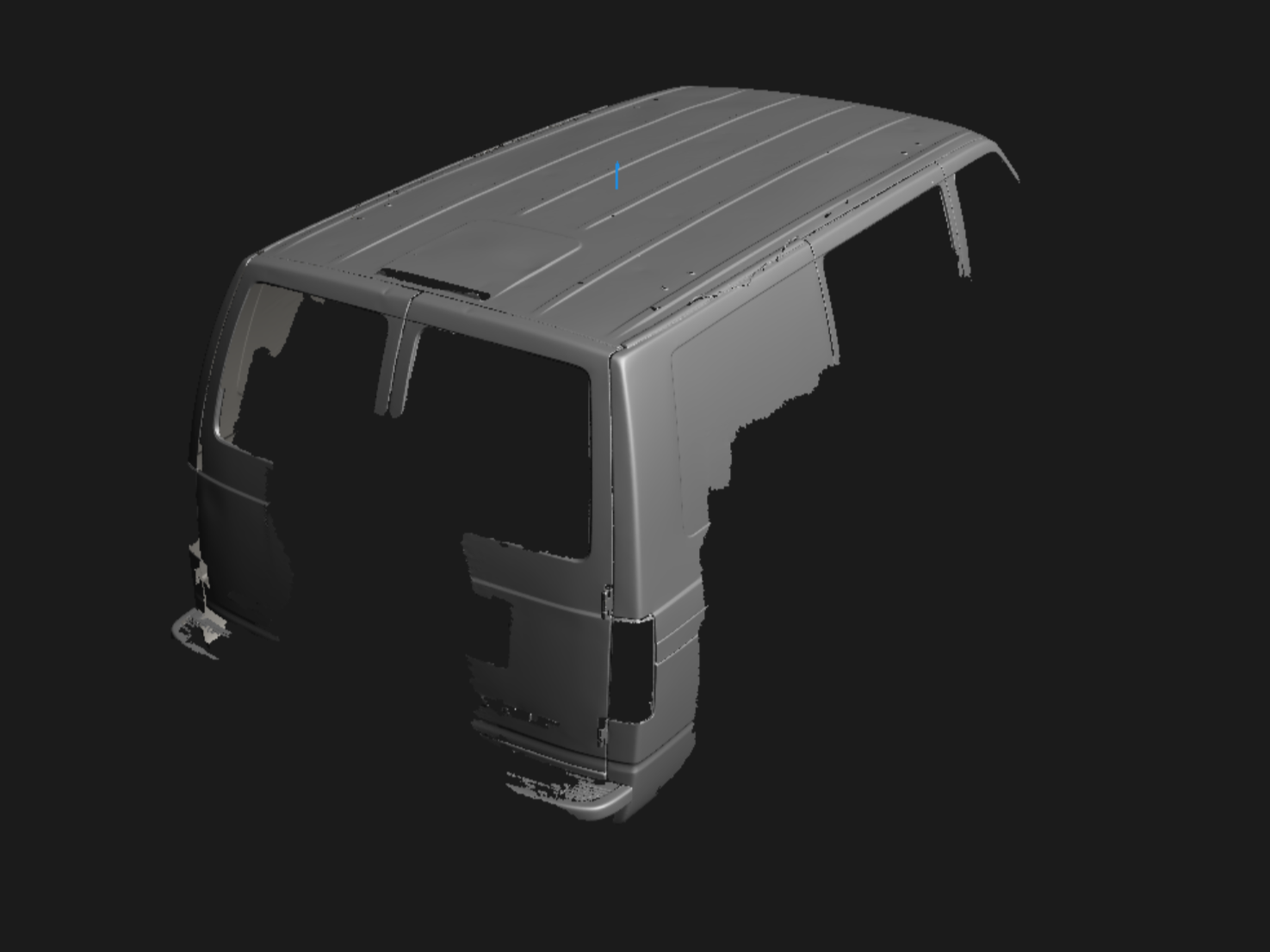

This listing is for the 3d scan (.stl) of the roof area of a 2005 Chevy Astro Van. The download also includes an Autodesk Fusion parametric timeline (.f3d) of the imported mesh and several planes that could be used as mounting locations. The scan is aligned to the xyz coordinate system in both file formats.

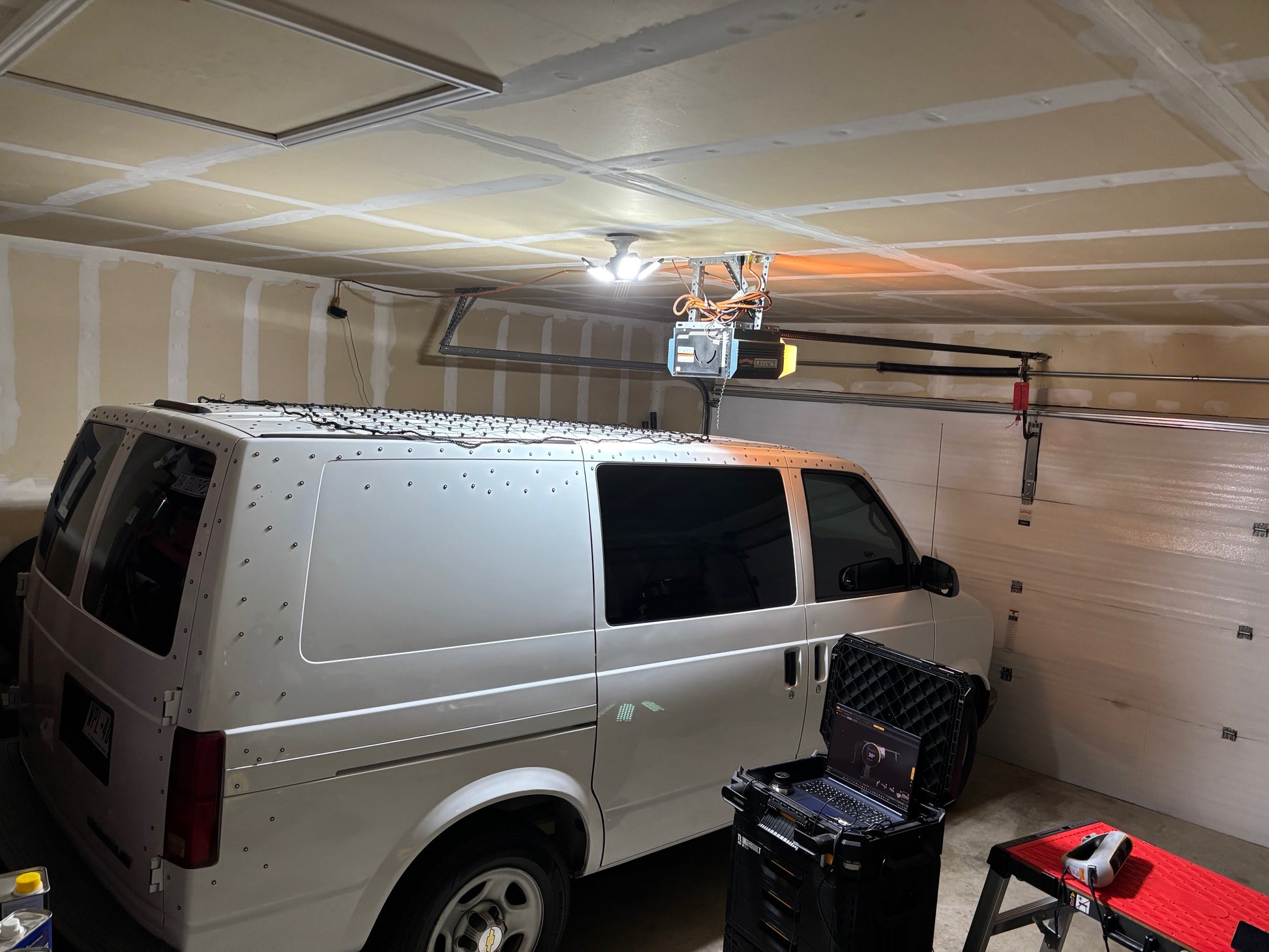

This scan was completed with the Peel 3. When importing the STL into Autodesk Fusion, make sure to import the mesh in millimeters. The CAD entities should be used for reference only. They should be verified prior to prototyping.
